ATENG 12724 — Split Air Conditioner Unit

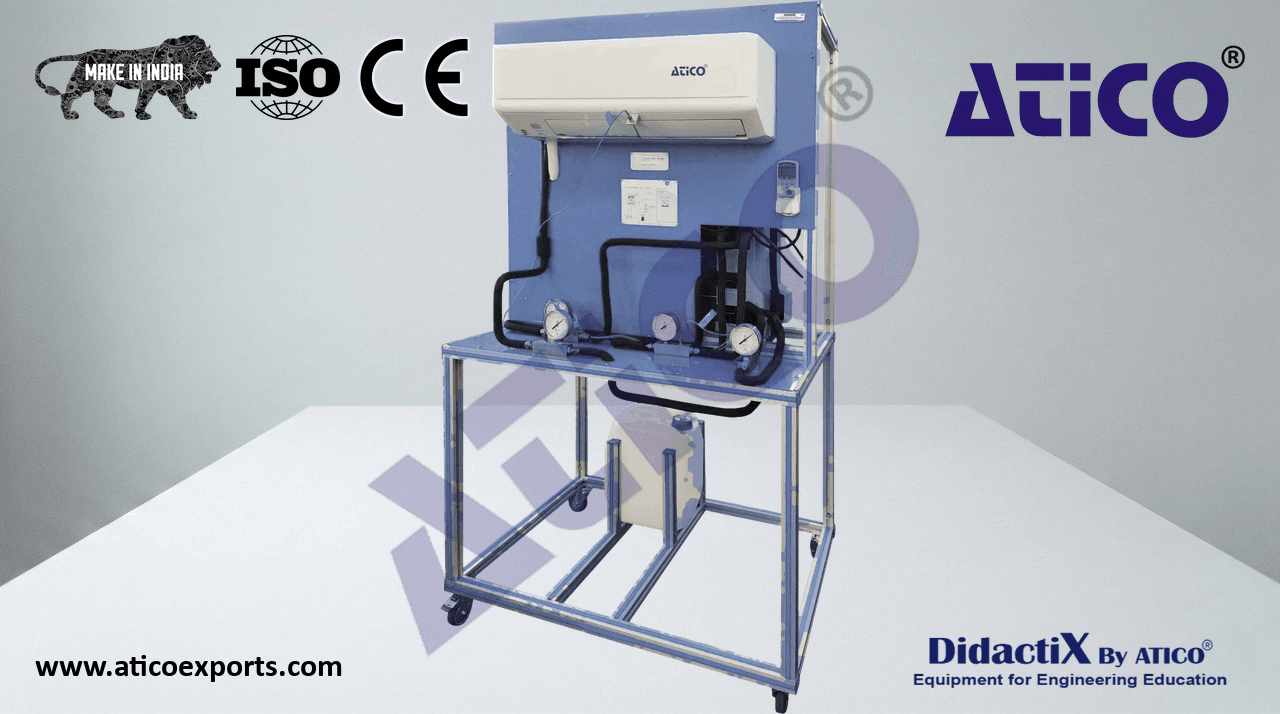

Experimental unit for the training of apprentices in the refrigeration area.
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Air conditioner:
- Absorbed power: 1 kW approx.
- Cooling capacity: 3.2 kW approx.
- Heating capacity: 3.6 kW approx.
- Maximum air flow rate outdoor unit: 1360 m³/h approx.
- SEER (cooling): 7.3 A++
- SCOP (heat): 5.7 A+++
- Refrigerant gas: R32.
- Timer: 24 h.
Battery operated remote control.
- Operating modes: heating, cooling, dehumidifying, ventilating, service mode and automatic mode.
- Additional functions adjustable with the remote control: sleep, swing and timer.
Four pressure gauges at the four key points of the process, before and after the compression stage and before and after the expansion
- stage:
- Three high pressure gauges, range: -0.1 – 50 bar.
- One low pressure manometer, range: -0.1 – 35 bar.
Four “J” type temperature sensors at the four key points of the process, before and after the compression stage and before and after the
expansion stage.
Two “J” type temperature sensors to measure the ambient temperature, at the outlet of the indoor unit and at the outlet of the outdoor unit.
Cables and accessories, for normal operation.
