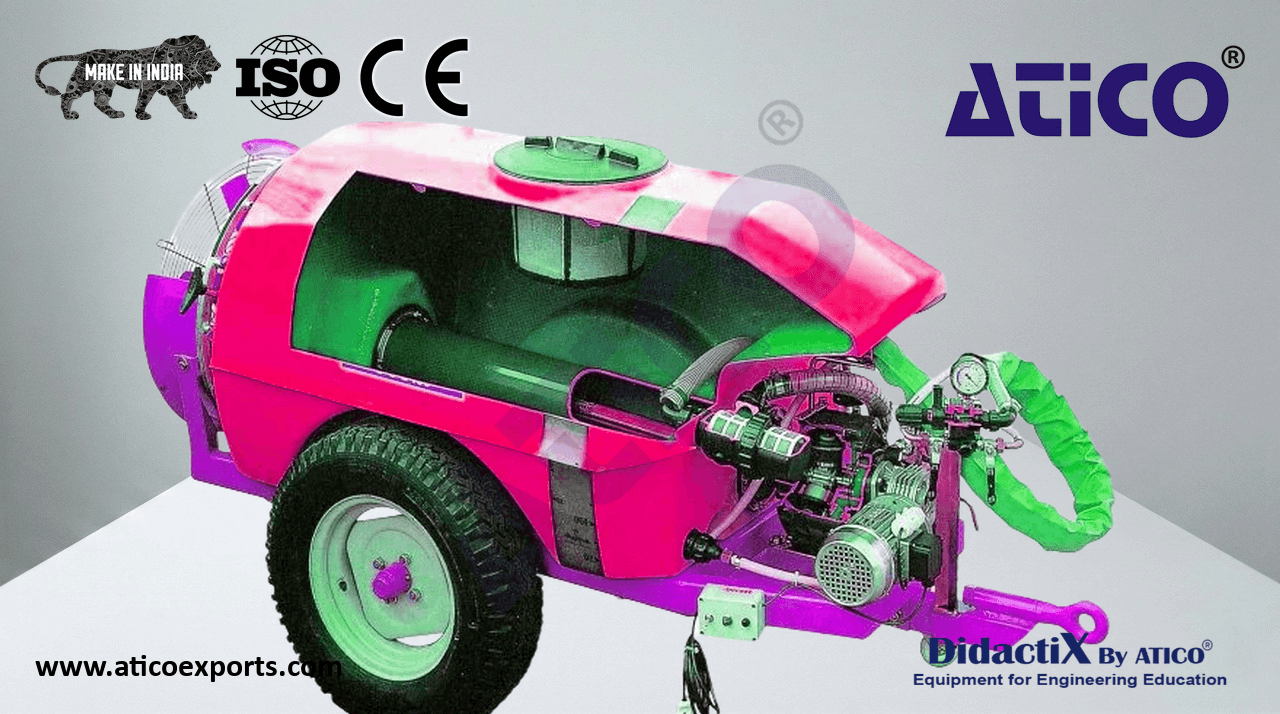

Sprayer Cut-Away, Agricultural

This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to differentiate the various parts, cross-sections and lubricating circuits. This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to differentiate the various parts, cross-sections and lubricating circuits. Many parts have been chromium plated and galvanized for a longer life. This unit operates electrically and requires a 120 volt power source. It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to differentiate the various parts, cross-sections and lubricating circuits.
It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

Specifications

• Agricultural sprayer; used to spray crops with fungicides • Radial piston pump • Fiberglass tank with filter • Control unit • Overdrive with fan • Hydraulic stirrer • Cardan shaft • Adjustable nozzles • Operates electrically at 120 volts

Weight And Dimensions

Size: 220cm x 110cm x 130cm (L x W x H) Net Weight: 220 kg Gross Weight: 330 kg
