STABILITY OF FLOATING BODIES

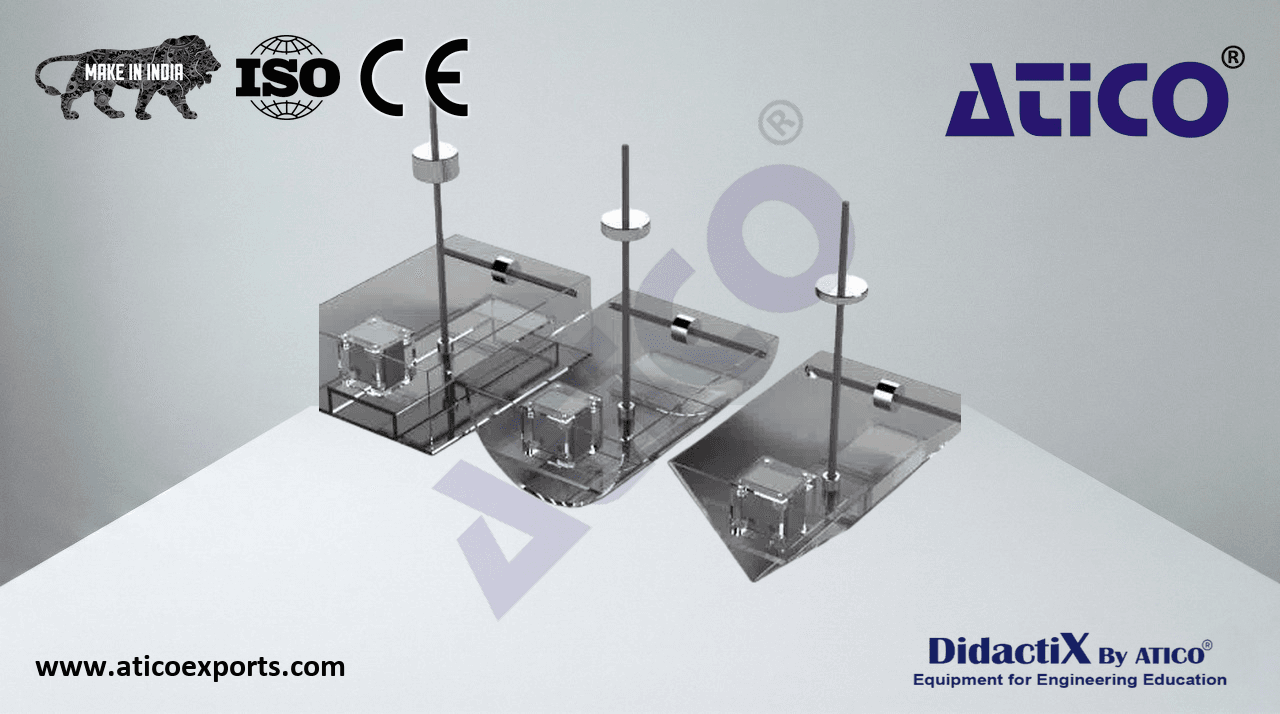

The variety of floating bodies within this module allows the determination of the metacentre – a midway point between a ship's centre of buoyancy when upright and its centre of buoyancy when tilted. This standalone module contains 3 separate water tanks into which the 3 supplied models can be floated and tested individually but also simultaneously. The tanks and hulls are transparent to aid observation. Learn about STABILITY OF FLOATING BODIES hydraulics-bench India for optimal educational outcomes.. The model boat hulls are supplied with a flat bottom, curved and triangular form. A central mast supports a movable sliding weight, with a scale engraved on its surface to allow quick and accurate measurement of the weight's position and adjustment of the centre of gravity. Learn about STABILITY OF FLOATING BODIES manufacturers for optimal educational outcomes.. The angle of heel of each hull is read from an integral digital inclinometer. The horizontal jockey weight is mounted on a threaded shaft where one turn equates to one millimetre of movement, marked accordingly for ease of measurement. Learn about STABILITY OF FLOATING BODIES exporters for optimal educational outcomes.. All three measurement devices allow very accurate results to be obtained in a short time span.

• Stainless steel and plastic components to avoid corrosion
• Integral digital inclinometer: ±0.1° increments, fully waterproof
• Individually tailored sliding weights for each hull design
• 3 Transparent water tanks capacity: 18 litres
• Horizontal balance weight range: 160mm
• Vertical balance weight range: 260mm
• Triangle model hull: 90° point angle
• Curved model hull: 200mm semi-circle
