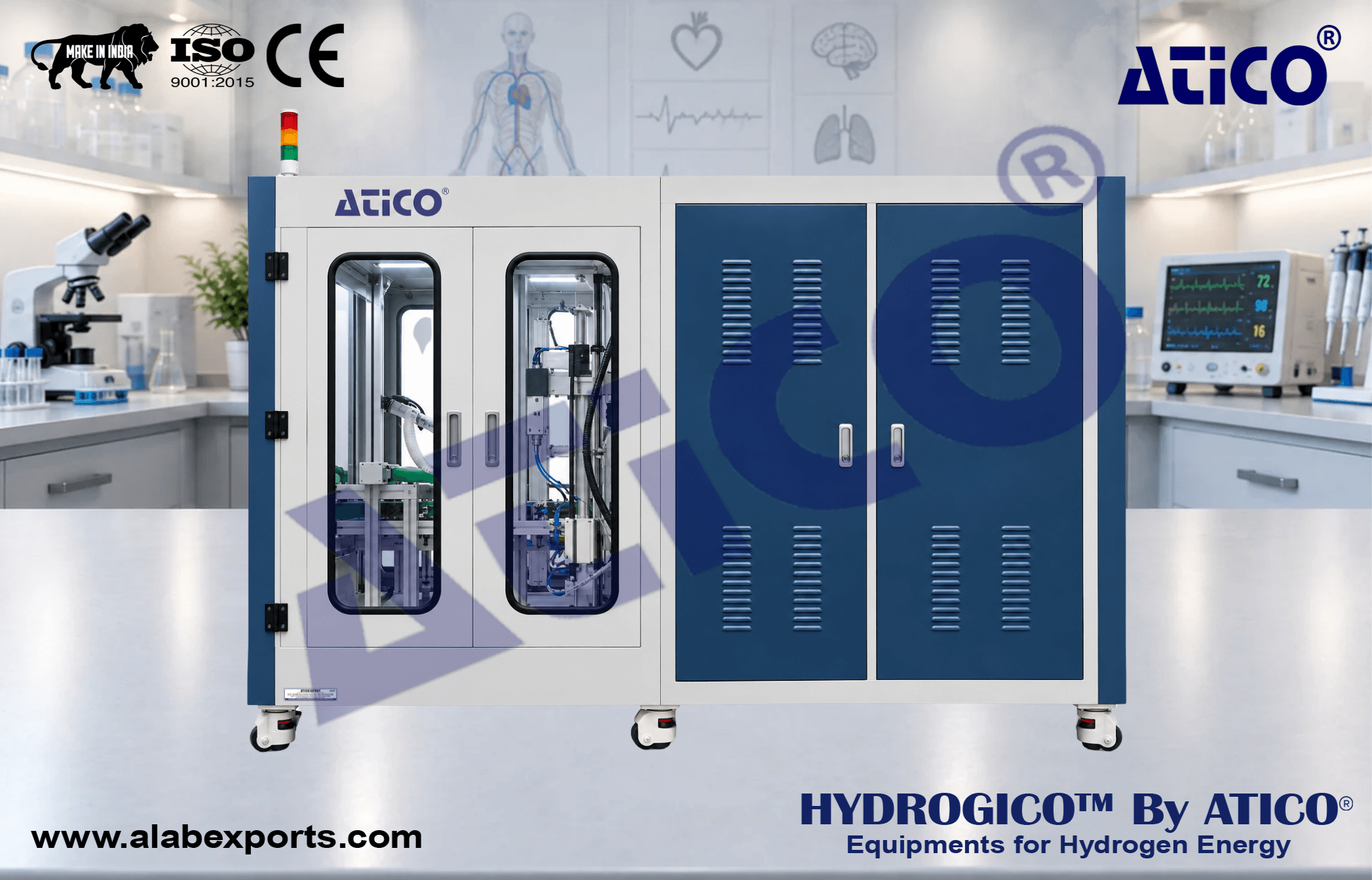

Stack Test Station 100KW For Hydrogen Energy Equipments

Manufactured by Atico Export under expert engineering guidance for reliable hydrogen energy research, testing, and technical training applications. Designed for effective monitoring and control of KOH electrolyte circulation, gas cooling, pressure, gas concentration, and cell voltage in hydrogen energy laboratories.

• 1500(W) X 3000(D) X 2200(H) mm

Mass Flow Control:

• Turndown Ratio: 1000:1
• Automatic N₂ Purge

Electrolyte Circulation:

• KOH (30%) Liquid Temperature Control: Room Temperature to Approximately 95°C
• Liquid Level Control and Alarm
• Automatic Filling (Optional)
• Liquid and Gas Separation
• Liquid Flow Control

Gas Cooling:

• Gas Cooling and Trap System
• Condensation Water and Gas Separation

Concentration Sensor:

• H₂ in O₂ Monitoring
• O₂ in H₂ Monitoring
• Measurement Range: 0–5%, 10% Vol.

Back Pressure Control:

• Maximum Pressure: 10 bar
• Optional Pressure Capacity: 30 bar

Cell Voltage Monitoring:

• Selectable Monitoring Channel
• Voltage Range: ±5 V per Channel
