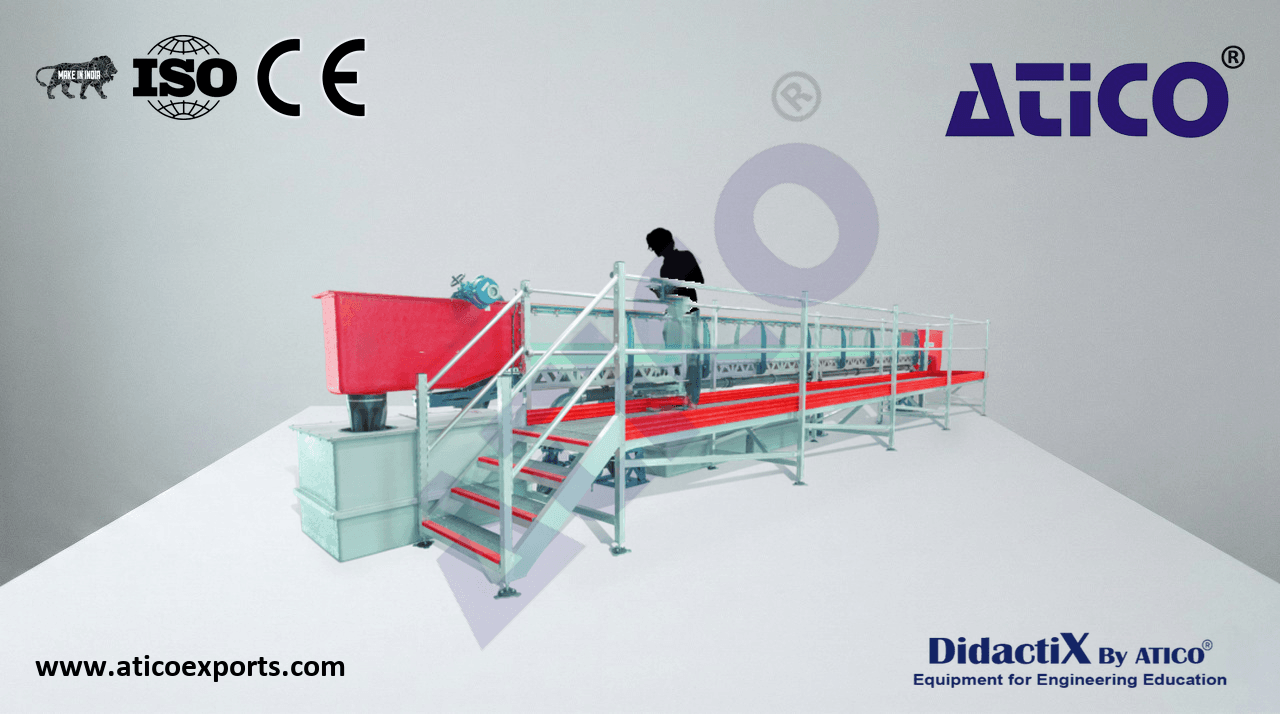

Standard Teaching & Research Flume

The laboratory flow channel is one of the most important tools available to hydraulics or civil engineers. Features open channel flow with free water surface exposed to atmospheric pressure. Available in lengths from 5 to 17. Learn about Standard Teaching & Research Flume for educational labs for optimal educational outcomes.. 5 meters in 2. 5 meter increments. Learn about Standard Teaching & Research Flume price for optimal educational outcomes..

The laboratory flow channel is one of the most important tools available to hydraulics or civil engineers whether engaged in teaching basic principles or researching solutions to practical problems. Many applications in fluid mechanics are associated with the flow of water through an open channel where the water has a free surface that is exposed to the air at atmospheric pressure.

• Walls: Toughened glass
• Bed: Stainless steel
• End tanks: GRP (Glass Reinforced Plastic)
• Sump tanks & pipework: PVC & PE
• Pump: Close-coupled centrifugal
• Flow regulation valve: Hand wheel operated butterfly
• Tilt parameters: +ve slope 1:40 max (1.4°), -ve slope 1:200 max (0.28°)
• Flow meter: Electro-magnetic
• Maximum flow rate: 38 Litres/sec
• Bed stability: 1.0mm (typical) at 400mm water depth
• Side wall stability: 0.8mm (typical) at 400mm water depth
• Width: 0.3m
• Height: 0.45m
