Static and Dynamic Balancing Unit

The Static and Dynamic Balancing Unit, is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.

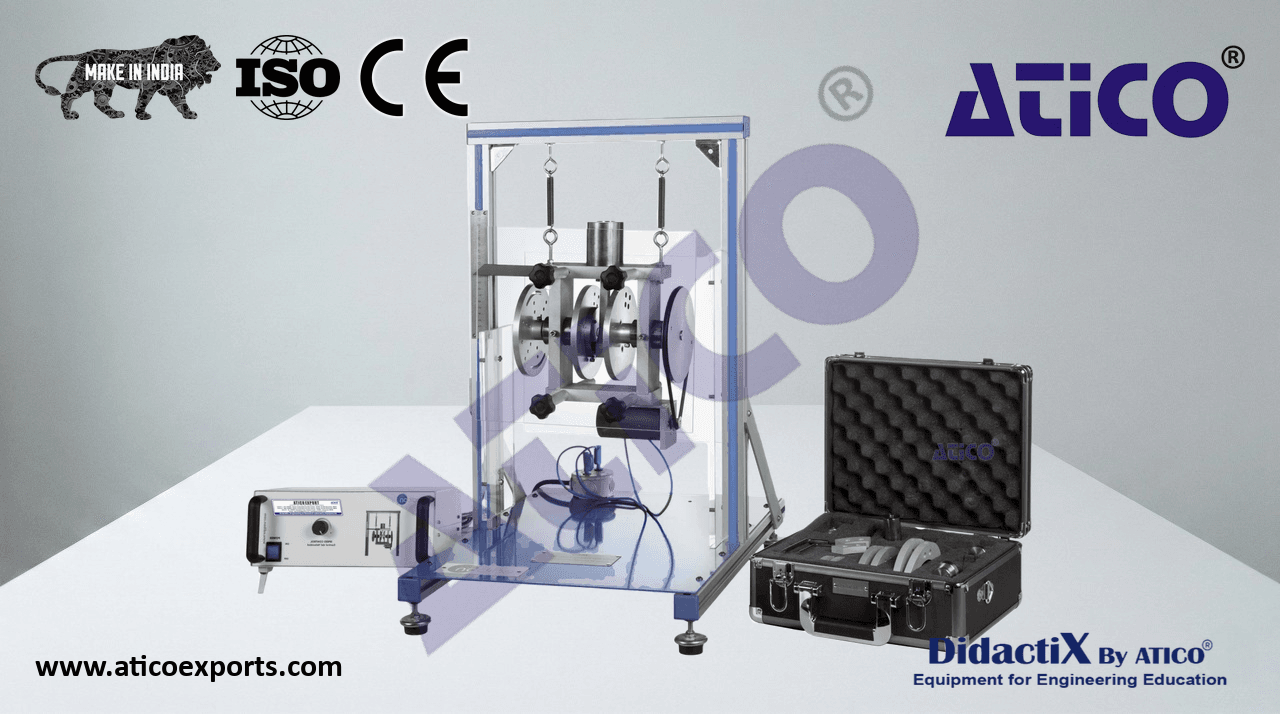

ATENG 12103 — Static and Dynamic Balancing Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12103” unit mainly consists of:
• Electrical motor with variable speed which can reach up to 8300 rpm.
  Transmission through pulleys and belt from the motor to the shaft.
• Two balancing discs. They are made of aluminum and have a diameter of 150 mm.
• Aluminum external disc, that we will name graduated disc. It has a diameter of 150 mm.
• Set of sector masses and weights to do the practices:
  Two sector masses of 27º angle.
  Two sector masses of 114º angle.
  Two sector masses of 43º angle.
  Two sector masses of 72º angle. Detail of the included sector masses and
  weights
  Eighteen weights of 60 g, 40 g, 30 g, 20 g and 15 g, to do the balance of masses in
  rotation experiments.
• Electric console:
  Metallic box.
  Speed control switch.
  Main switch.
  Cables and accessories, for normal operation.
