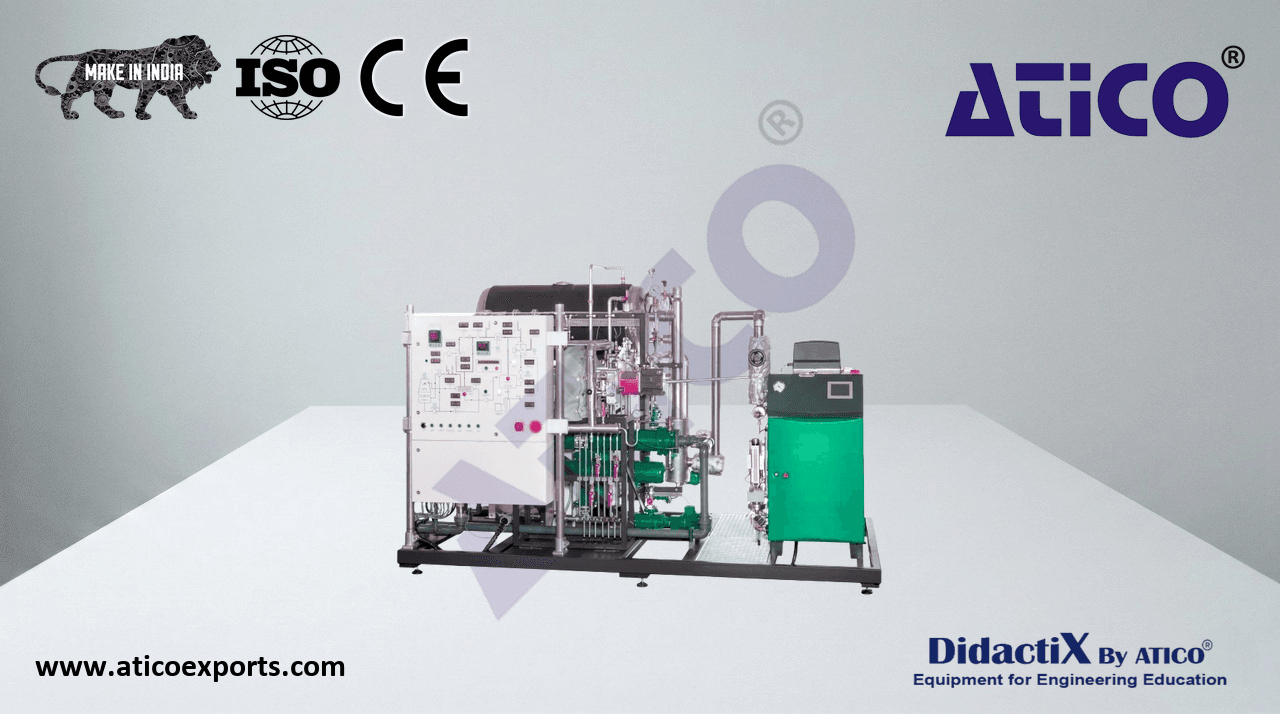

Steam power plant, 1,5kW

In steam power plants, thermal energy is first converted into mechanical energy and then into electrical energy. A steam power plant essentially consists of a heat source for generating steam, a turbine with load, and a cooling mechanism for condensing the steam.

• laboratory-sized steam power plant
• oil-fired steam generator with electric superheater
• single-stage axial turbine with Curtis wheel, vacuum or exhaust operation
• AC generator as turbine load
• water-cooled condenser
• feedwater purification
• software for data acquisition via USB under Windows 11
• plant monitored and controlled with integrated PLC
• cooling water connection 10m°/h or cooling tower required
