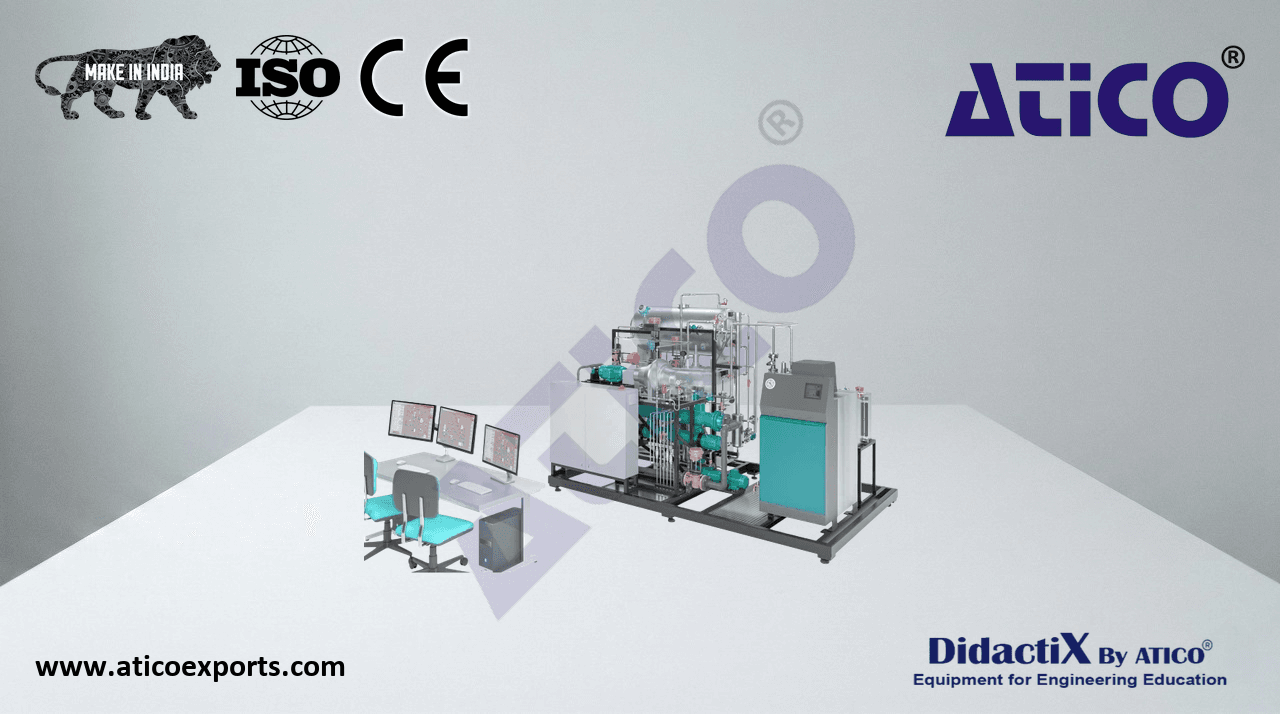

Steam power plant 1,5kW with process control system

Nowadays large process engineering systems, such as steam power plants, are managed with process control systems (PCS). The entire system is monitored, actuators regulated and controlled, measurements recorded and displayed via the process control system.

• laboratory-sized steam power plant
• oil-fired once-through boiler with electrical superheater
• single-stage industrial steam turbine with AC generator as turbine load
• water-cooled condenser
• feedwater purification
• process control system for monitoring, control and regulation of the plant
• control station with complete instrumentation on modern LCD monitors, touchscreen operation
• system equipped with sensors and actuators for monitoring and controlling the plant via integrated PLC and Ethernet
• cooling water connection 10m3/h or cooling tower required
