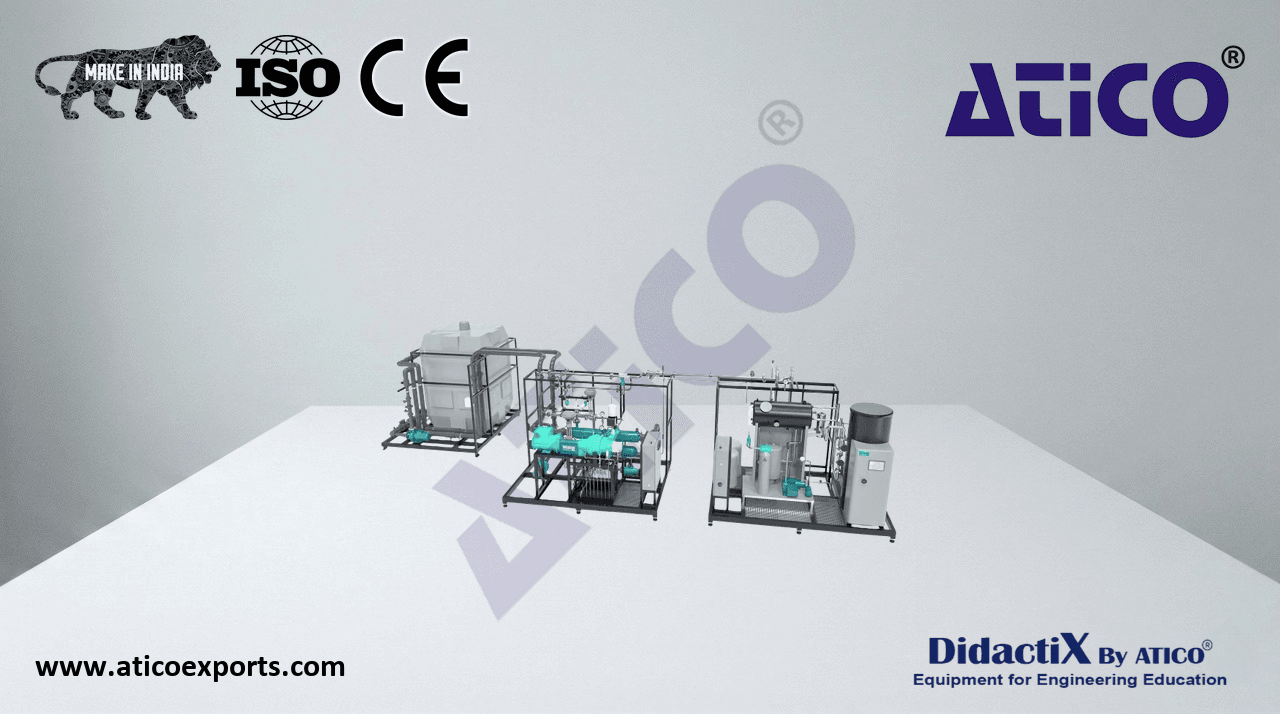

Steam power plant 20kW with process control system

Nowadays large process engineering systems, such as steam power plants, are managed with process control systems. The Steam Power Plant is specifically designed for training purposes in the field of power plant engineering with process control systems. Due to the size and complexity of the system, in many aspects the operating behaviour corresponds to that of actual large-scale plants, thereby enabling training that is as close to the real thing as possible. Learn about Steam power plant 20kW with process control system price for optimal educational outcomes.. The plant consists of four separate modules and can therefore be flexibly adapted to the space available in the laboratory:.

• laboratory-sized steam power plant
• gas/oil-fired once-through steam boiler with electrical superheater
• single-stage industrial steam turbine with Curtis wheel
• electronic speed control with electro-pneumatic control valve
• synchronous generator with synchronising device for grid connected or stand-alone operation
• water-cooled condenser with cooling water circuit and wet cooling tower
• feedwater purification with ion exchanger and chemical dosing
• modern digital plant control via a process control system
• control station with complete instrumentation on modern LED monitors, touchscreen operation
