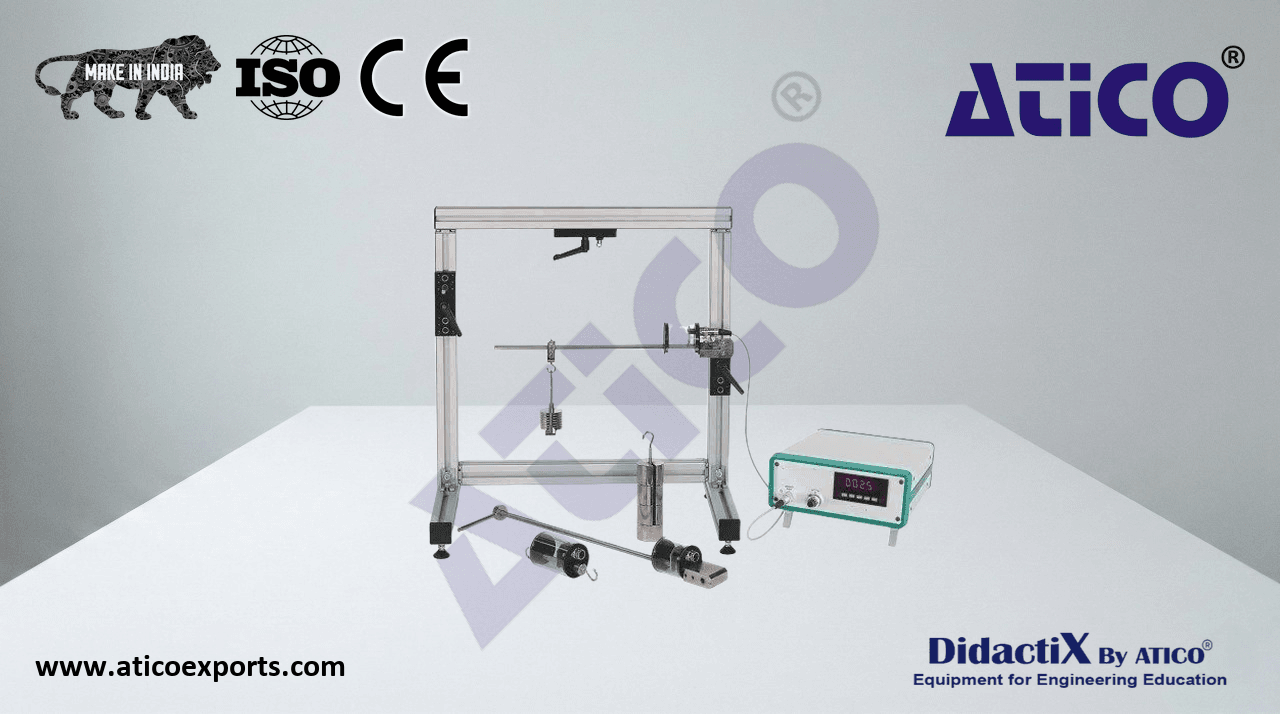

Strain gauge training system

Strain gauges are used extensively in sensor systems to detect forces, moments and deformations.

• experimental unit investigating the fundamentals of strain gauge measurement
• tension, bending and torsion tests each with strain gauge measuring points in full bridge circuit
• strain gauge application areas protected by Plexiglas cover
• steel test bodies
• measuring amplifier with 4-digit digital display
• frame to house the measuring objects
• determination of modulus of elasticity on various materials using measuring objects FL 100.01, FL 100.02, FL 100.03
• storage system to house the components
