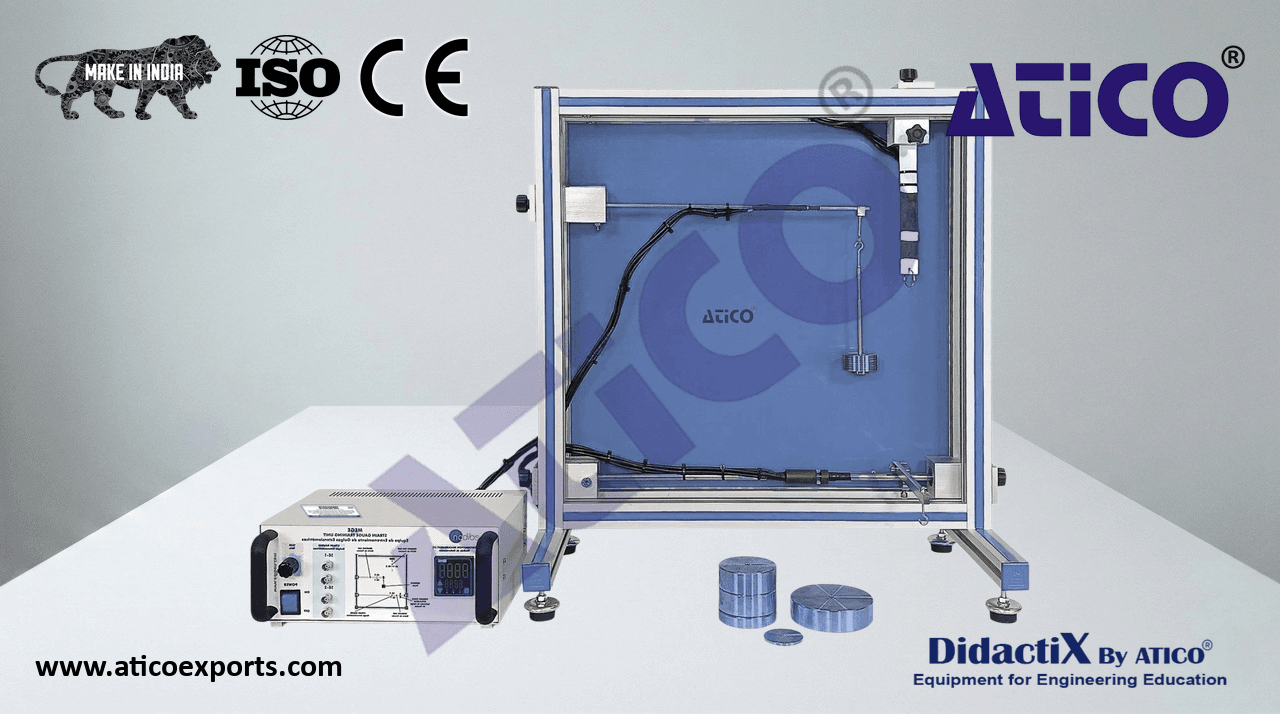

ATENG 12220 — Strain Gauge Training Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Three strain gauge test specimens (bars), each with strain gauge measuring points:
- Torsion test bar:
- Material: stainless steel.
ATENG 12220 detail
- Length: 500 mm.
- Diameter: 10 mm.
Required elements
- Tension test bar:
(Not included)
- Material: stainless steel.
- Length: 200 mm.
- Cross-section: 0.5 x 25 mm.
- Bending test bar:
- Material: stainless steel. MEGE-A1. Tension test
bar, aluminum.
- Length: 400 mm.
- Cross-section: 4 x 25 mm.
The strain gauges are inside a transparent cover that protects them and make them clearly
visible for the visualization of the process.
- Set of weights:
MEGE-A2. Tension test
bar, cooper
10 x 0.5 N.
1 x 5 N.
2 x 10 N.
1 x 20 N.
- Electronic console:
MEGE-A3. Tension test
Metallic box. bar, brass
Main switch.
Switch to tare the deformation measurements.
Strain gauges connectors.
Digital display for the deformation measurement.
