Stress and strain analysis on a membrane

In experimental stress and strain analysis, strain gauges are used to determine stresses and strains in components and structures. The maximum stresses and strains are key variables in terms of its structure, and ultimately dictate the dimensions of a component. Strain gauges provide the means required to evaluate mechanical stress and strains. Learn about Stress and strain analysis on a membrane suppliers for optimal educational outcomes..

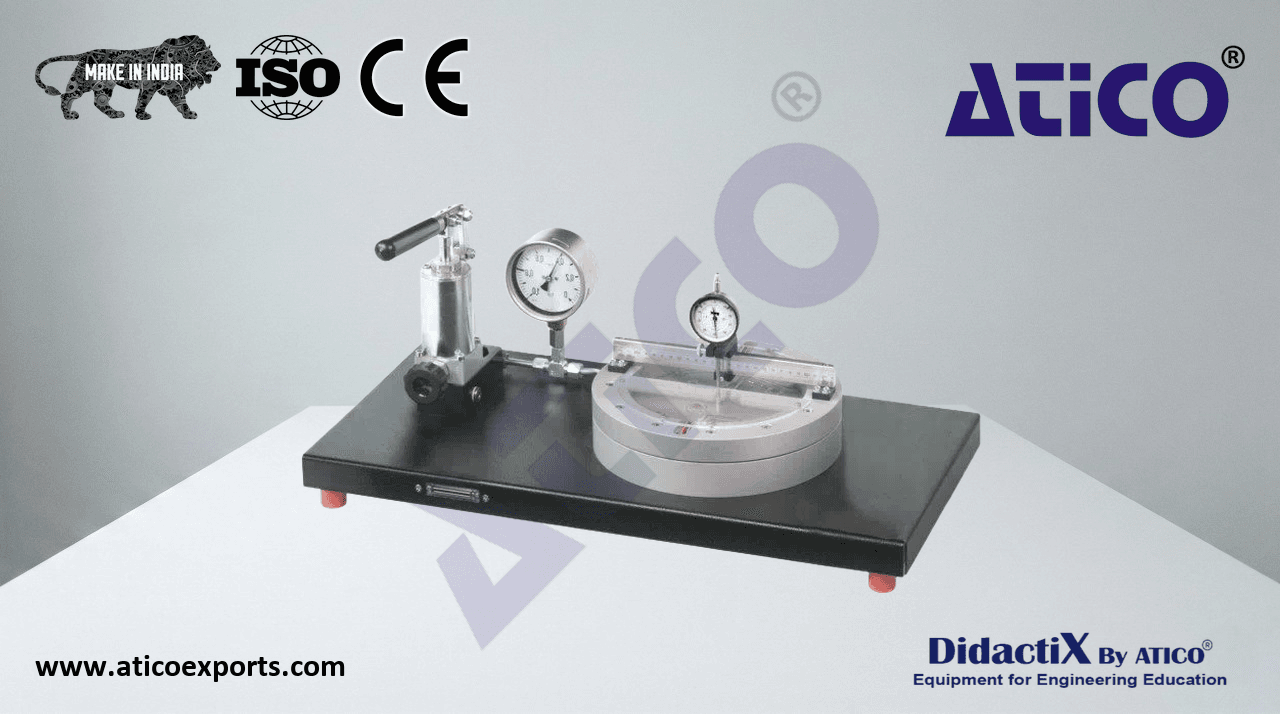

• investigate the deflection and strain of a thin disk under compressive load
• strain gauges measure in the radial and tangential direction
• strain gauge configured as half-bridge
• possible to measure the deflection at any radius
• measure the deflection via adjustable dial gauge, scale indicates position along the radius
• hermetically sealed hydraulic system, maintenance-free, for generating the compressive load
• hydraulic system with hydraulic pump and manometer
• FL 152 measuring amplifier required
• software for analysing measured values in FL 152
