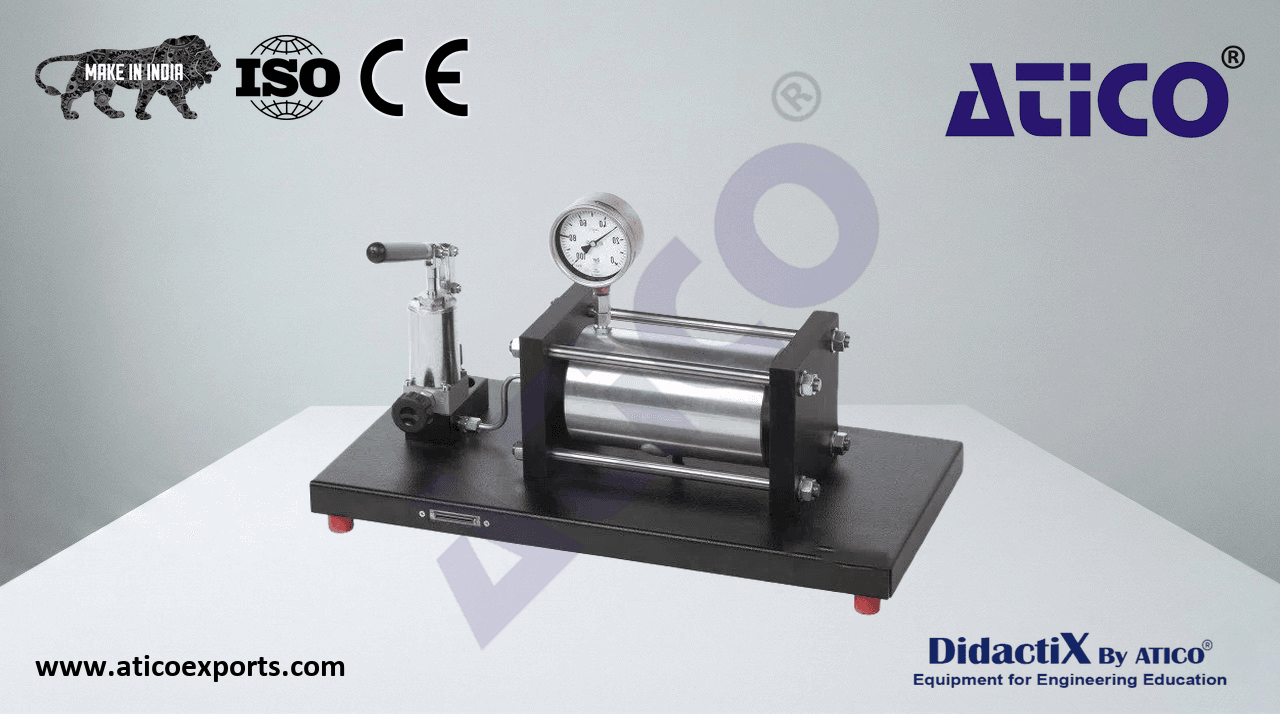

Stress and strain analysis on a thick-walled cylinder

In contrast to thin-walled vessels, when designing thick-walled vessels allowance must be made for an uneven distribution of stresses through the thickness of the wall. The stress state in a thick-walled vessel under internal pressure is triaxial. The direct stresses and strains occur: radial, circumferential, hoop and axial. Learn about Stress and strain analysis on a thick-walled cylinder equipment for optimal educational outcomes..

• investigation of the stresses and strains in a thick-walled cylinder under internal pressure
• two-part cylinder with flat groove
• strain gauge application at various radial points in the groove and on the cylinder surface
• hermetically sealed hydraulic system, maintenance-free to generate pressure
• hydraulic system with hydraulic pump and manometer
• FL 152 measuring amplifier required
• software for analysing measured values in FL 152
