Study of Dielectric Constant and Curie Temperature of Ferroelectric Ceramics

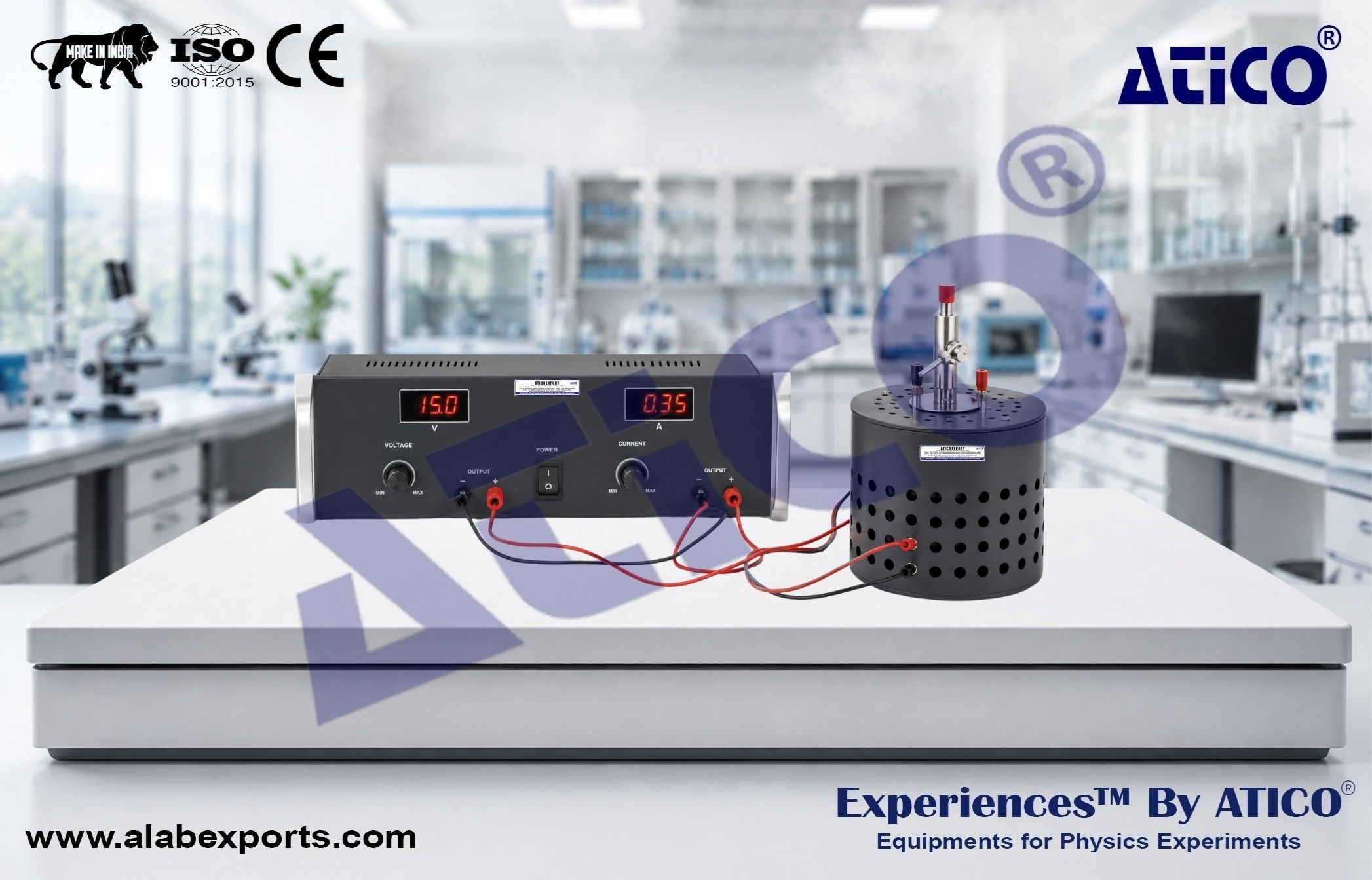

The experimental setup is designed for the study and measurement of the capacitance characteristics of a Barium Titanate (BaTiO₃) sample under controlled temperature conditions.

Physics Lab Experiments Setup from Atico Exports.

Probe Arrangement :

• Two Individually Spring-Loaded Probes
• Probe Arrangement Mounted on a Suitable Stand with Sample Plate
• RTD Embedded in the Sample Plate for Accurate Measurement of Sample Temperature
• Stand Also Serves as the Lid of the Temperature-Controlled Oven
• Suitable Leads Provided for Connection to the Capacitance Meter and Temperature Controller

Sample :

• Barium Titanate (BaTiO₃)

Oven :

• High-Quality Temperature-Controlled Oven
• Designed for Fast Heating and Cooling Rates for Effective Temperature Control

Main Units :

• The Setup Consists of Two Units Housed in the Same Cabinet

Oven Controller :

• Platinum RTD (A Class) for Temperature Sensing

Temperature Range :

• Ambient to 200°C

Digital Capacitance Meter :

• Compact Direct-Reading Instrument for Measuring the Capacitance of the Sample

Capacitance Range :

• 50 to 6000 pF
