SUSPENDED CENTRE SPAN BRIDGE

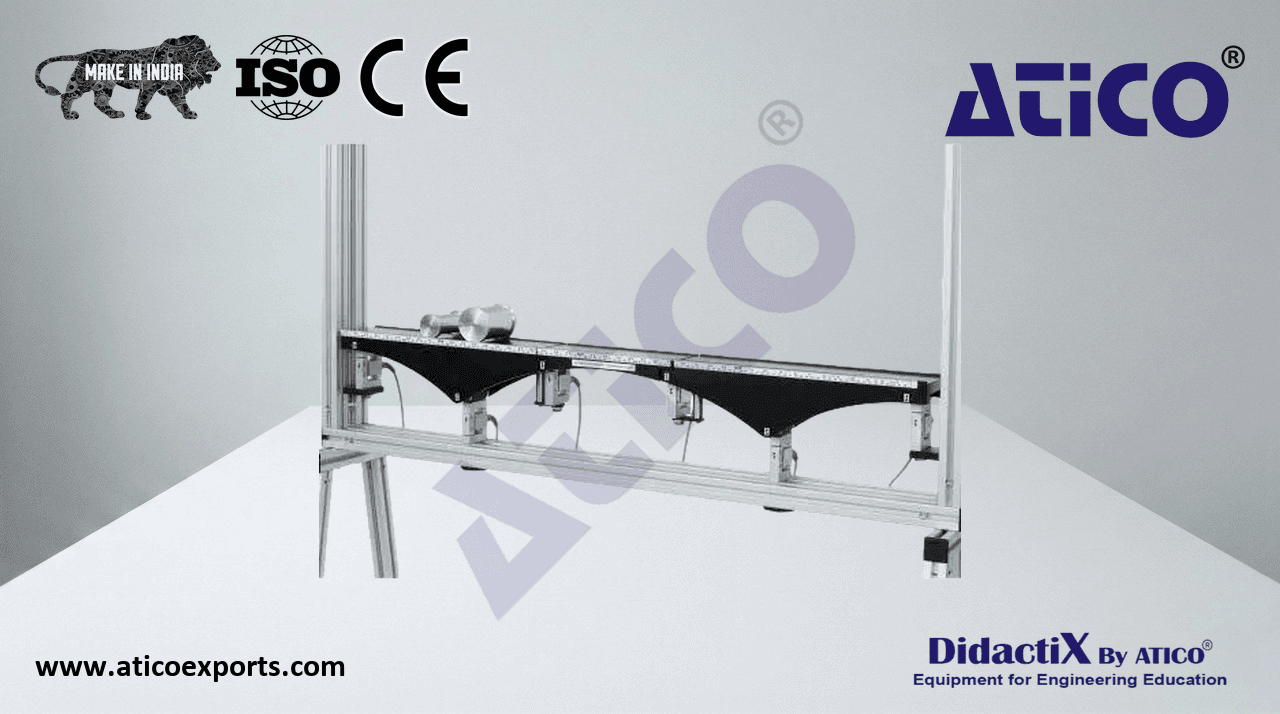

A model three-span bridge with flat deck and solid spandrels. The bridge is supported on two inner piers and anchored to two outer piers, providing a pair of cantilevers on which the suspended centre span is carried. Four piers and the centre span supports incorporate reaction-measuring load cells connecting directly to a digital interface (sold separately). Learn about SUSPENDED CENTRE SPAN BRIDGE suppliers for optimal educational outcomes.. The bridge can be loaded using point loads (25 N or 10 N) or a tandem rolling load (25 + 10 N linked), simulating a vehicle passing over the deck. The tandem arrangement can also be separated to obtain influence lines. Learn about SUSPENDED CENTRE SPAN BRIDGE specifications for optimal educational outcomes..

• Bridge total length: 1226 mm
• Centre span length: 270 mm
• Side bridge section length: 478 mm
• Load cell range: 0–500 N
