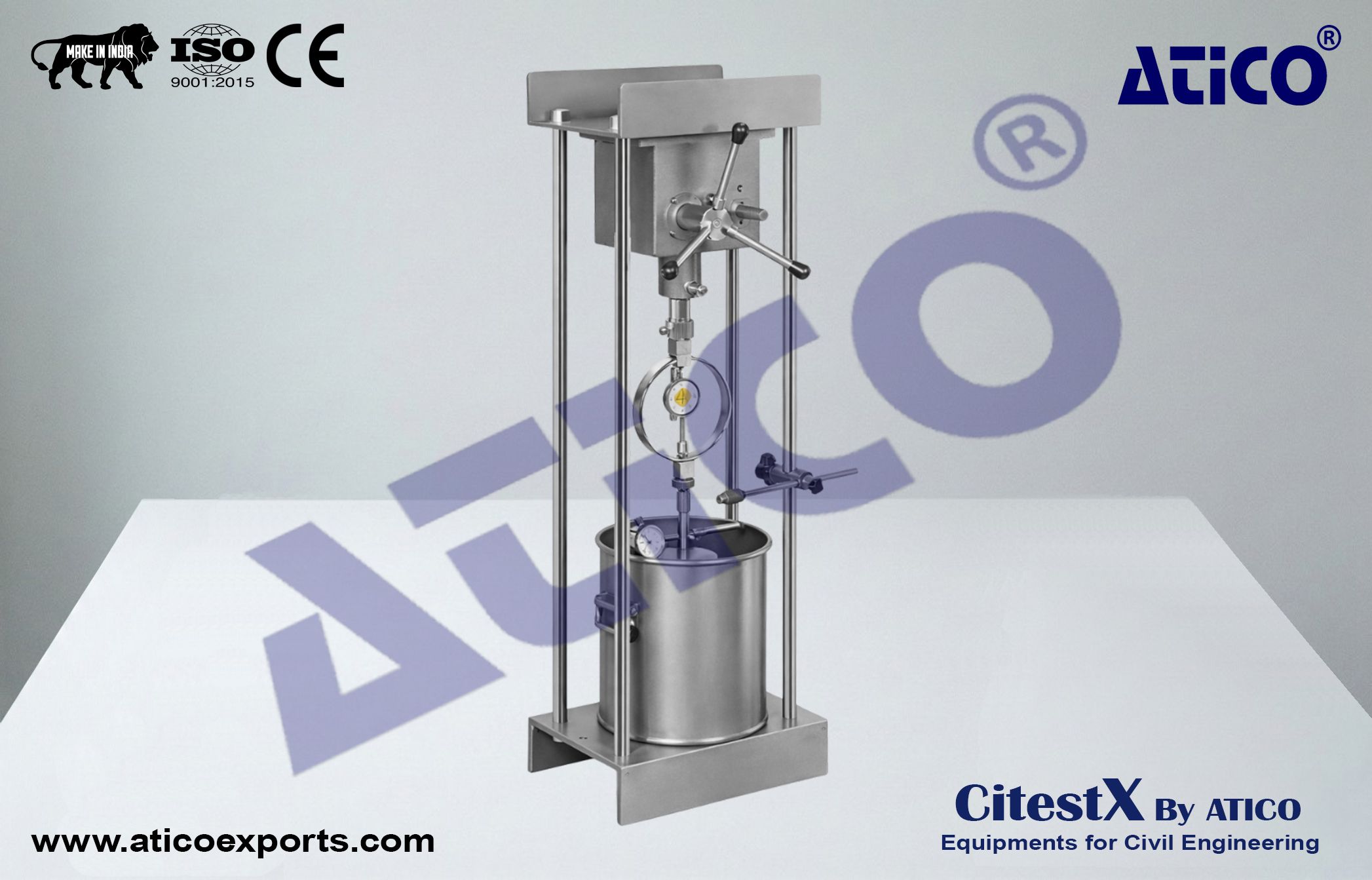

Swell Test Apparatus

Usage :

• Suitable to determine swelling pressure developed by soil specimens moulded

Construction :

• Solid-Robust Construction

Load Frame :

• Hand Operated System, Capacity : 50 KN (5,000 kgf)

Mould :

• Dia. : 100mm x Height : 127.3mm
• (Volume : 1000 ml)

Base Plate and Collar :

• Provided for Mould

Load Transfer Bar :

• Material : Steel

Soaking Tank :

• Dia. : x 250 mm x Height : 210 mm

Proving Ring :

• Provided with integral boss, high sensitivity,
• Capacity : 2.5KN (250 Kgf)

Dial Gauge :

• Travel : 25 mm, Least Count : 0.01mm

Lid and Receiver :

• GI Frame, suitable for 300 mm dia x 450 mm dia sieves

Swell Plate :

• Perforated, Dia. : 100 mm x Thickness : 16 mm

Spencer :

• Dia. : 100 mm x Thickness : 12.7 mm

Pair of Porous Stones :

• Dia. : 100 mm x Thickness 12.7 mm
