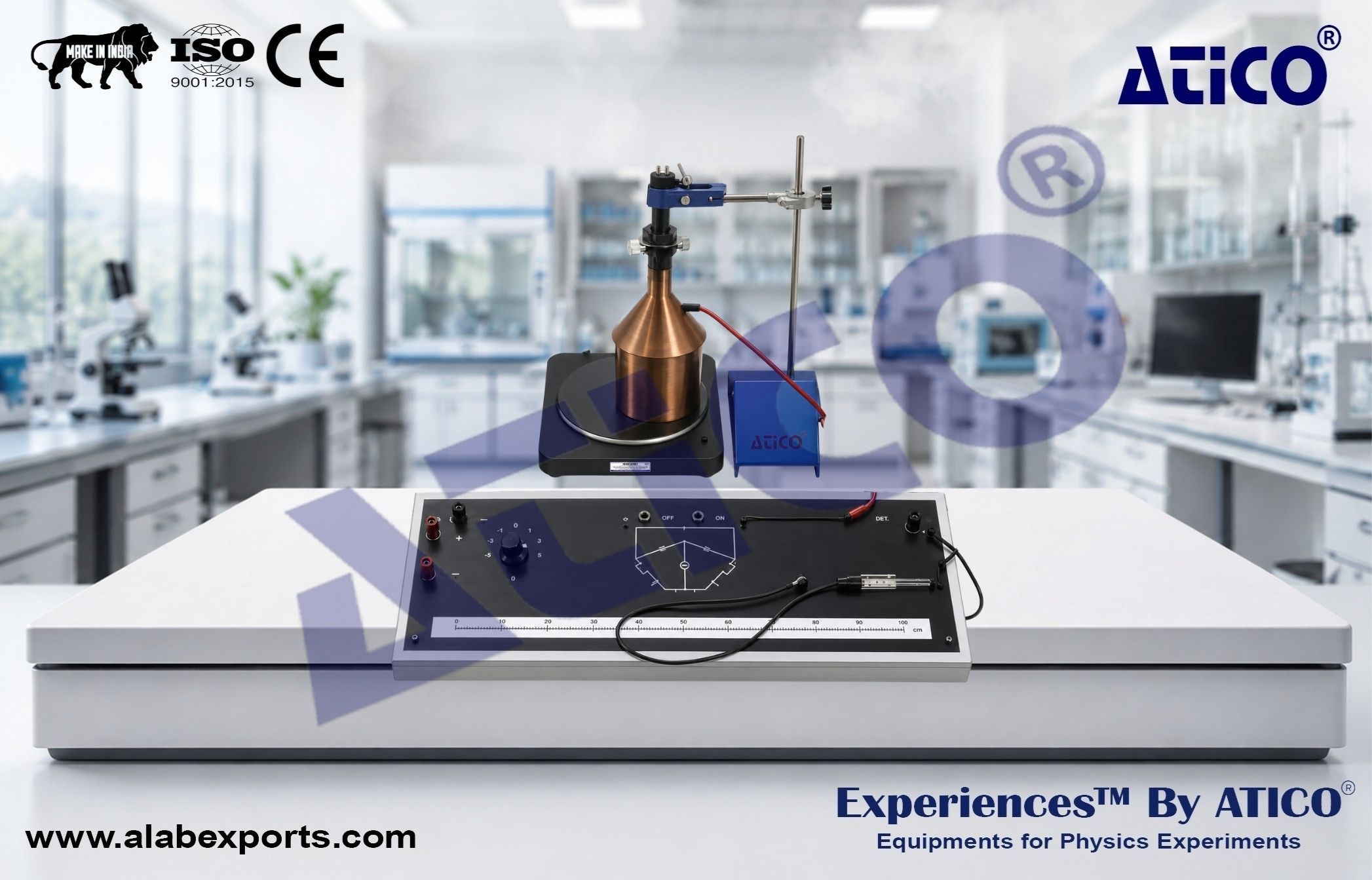

Temperature Coefficient of Resistance for Platinum Using a Platinum Resistance Thermometer Callender and Griffiths Bridge

Temperature Coefficient of Resistance for Platinum Experimental Setup is designed specifically for measuring the temperature coefficient of resistance of platinum using a Platinum Resistance Thermometer and Callender and Griffith’s Bridge. The setup includes a galvanometer, power supply, and heating arrangement.

Physics Lab Experiments Setup from Atico Exports.

Objective :

• To Measure the Temperature Coefficient of Resistance for Platinum Using a Platinum Resistance Thermometer and Callender and Griffith’s Bridge
• Determination of Electrical Zero
• Determination of Resistance Per Unit Length of the Bridge Wire
• Determination of R2 and R1 at Steam Temperature and Room Temperature Respectively

Galvanometer Range :

• 30-0-30

Regulated Power Supply :

• 0 to 5 V DC at 1 A

Technical Specifications :

Packaging Type :

• Corrugated Boxes

Material :

• Wooden

Type :

• Analog

Supply :

• AC Mains

Usage / Application :

• Laboratory

• Callender and Griffith’s Bridge
• Galvanometer
• Regulated DC Power Supply
• Platinum Resistance Thermometer
• Heating Arrangement
