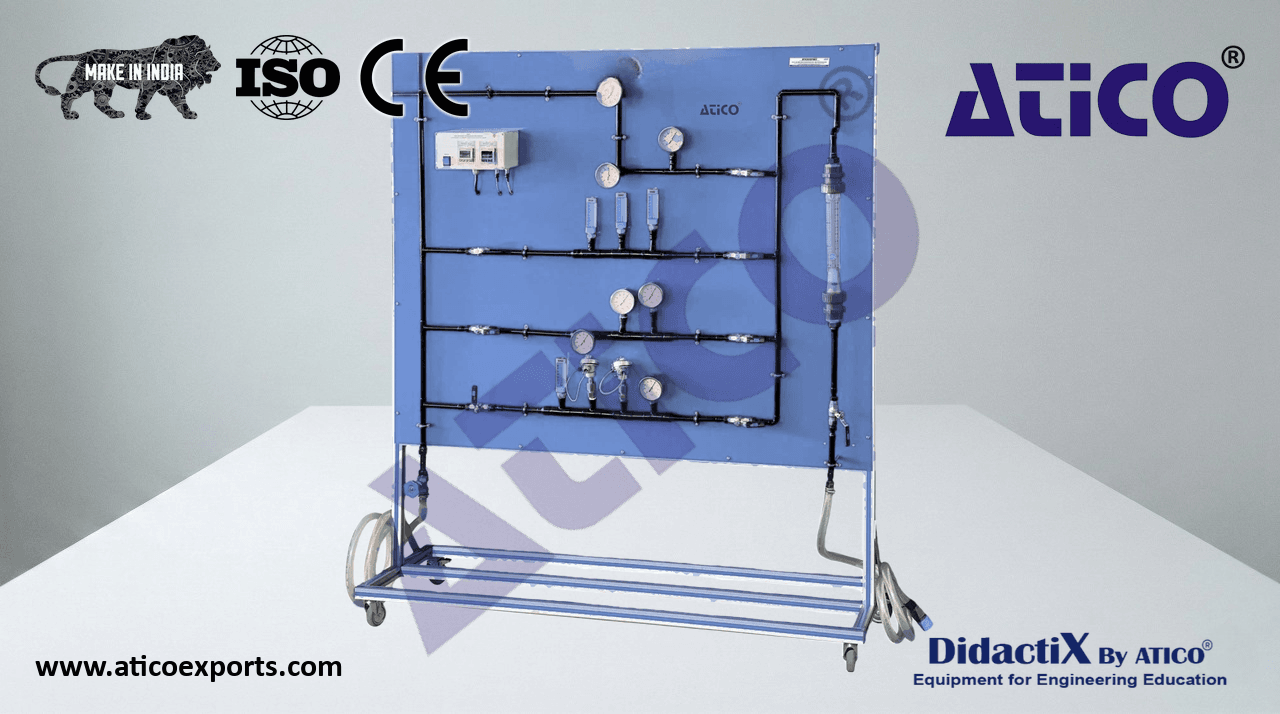

ATENG 12688 — Temperature Measurement Training Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Diagram in the front panel with distribution of the elements similar to the real one.
- The unit includes:
- Four types of thermometers:
- Bimetallic dial thermometers, range: -20 – 60 °C.
- Liquid expansion thermometers, range: 0 – 60 °C.
- “Pt100” type resistance temperature sensor, range: -75 – 250 °C.
- “K” type temperature sensor, range: 0 – 1100 °C.
- Four measuring sections:
- Material: Cooper.
- Section no.1: It includes three bimetallic dial thermometers situated at different positions.
ATENG 12688 detail
- Section no.2: It includes three liquid expansion thermometers situated at different heights.
- Section no.3: It includes three bimetallic dial thermometers situated at different heights.
- Section no.4: It includes one bimetallic dial thermometer, one liquid expansion thermometer, one “Pt100” type resistance temperature
sensor and one “K” type temperature sensor situated at same height.
- Flowmeter situated on the water inlet to measure the flow rate in the measuring sections, range: 150 – 1500 l/h.
- Nine ball valves:
Ball valve situated in the water inlet line.
Eight ball valves situated in the measuring sections inlet and outlet lines to select individually the different sections.
Control valve situated in the water outlet line to regulate the water flow rate in the measuring sections.
Water connections made using quick-release couplings.
- Control panel:
Digital display for the “pt100” temperature sensor.
Digital display for the “K” type temperature sensor.
Main switch.
Cables and accessories, for normal operation.
