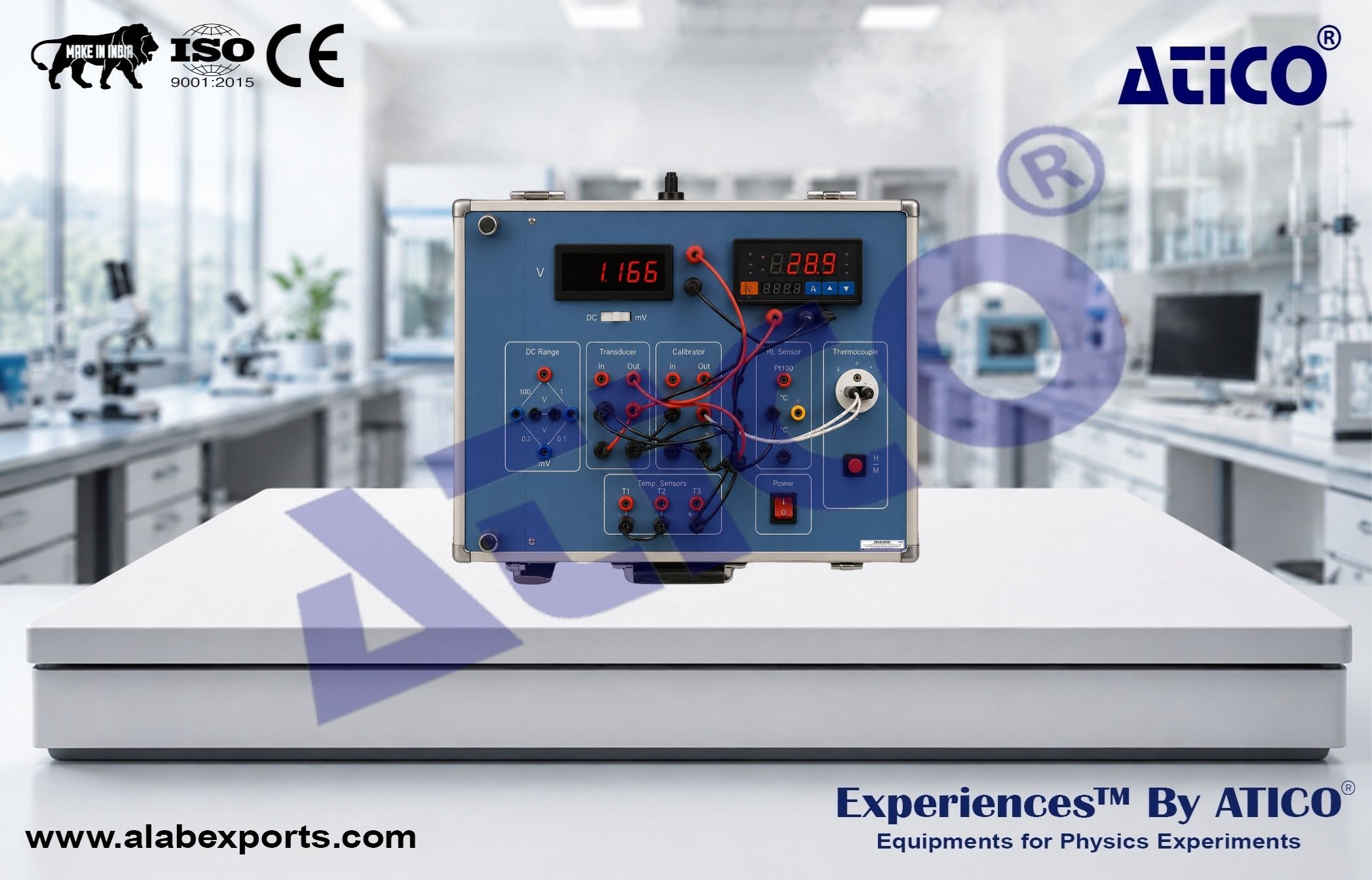

Temperature Properties of Various Temperature Sensors Experiment

Experiments :

• Study of thermal resistance measurement using the constant current method.

Experiments :

• Study of thermal resistance measurement using the DC bridge method.

Experiments :

• Investigation of the temperature characteristics of Pt100 platinum resistance temperature sensors.

Experiments :

• Investigation of the temperature characteristics of NTC1K thermistors (negative temperature coefficient).

Experiments :

• Investigation of the temperature characteristics of PN-junction temperature sensors.

Experiments :

• Investigation of the temperature characteristics of current-output integrated temperature sensors.

Experiments :

• Investigation of the temperature characteristics of voltage-output integrated temperature sensors.

Bridge Source :

• +2 V ± 0.5%, 0.3 A.

Constant Current Source :

• 1 mA ± 0.5%.

Voltage Source :

• +5 V, 0.5 A.

Digital Voltmeter :

• 0–2 V, accuracy ±0.2%, resolution 0.0001 V.
• 0–20 V, accuracy ±0.2%, resolution 0.001 V.

Temperature Controller :

• Resolution: 0.1°C.
• Stability: ±0.1°C.
• Temperature Range: 0–100°C.
• Accuracy: ±3% (up to ±0.5% after calibration).

Power Consumption :

• 100 W.

Standard Accessories :

• Main Unit – 1 No.
• Temperature Sensors – 6 Nos.
• Jumper Wires – 6 Nos.
• Power Cord – 1 No.
• Instruction Manual – 1 No.

Designed For :

• Physics Lab Experiments from Atico Exports.
