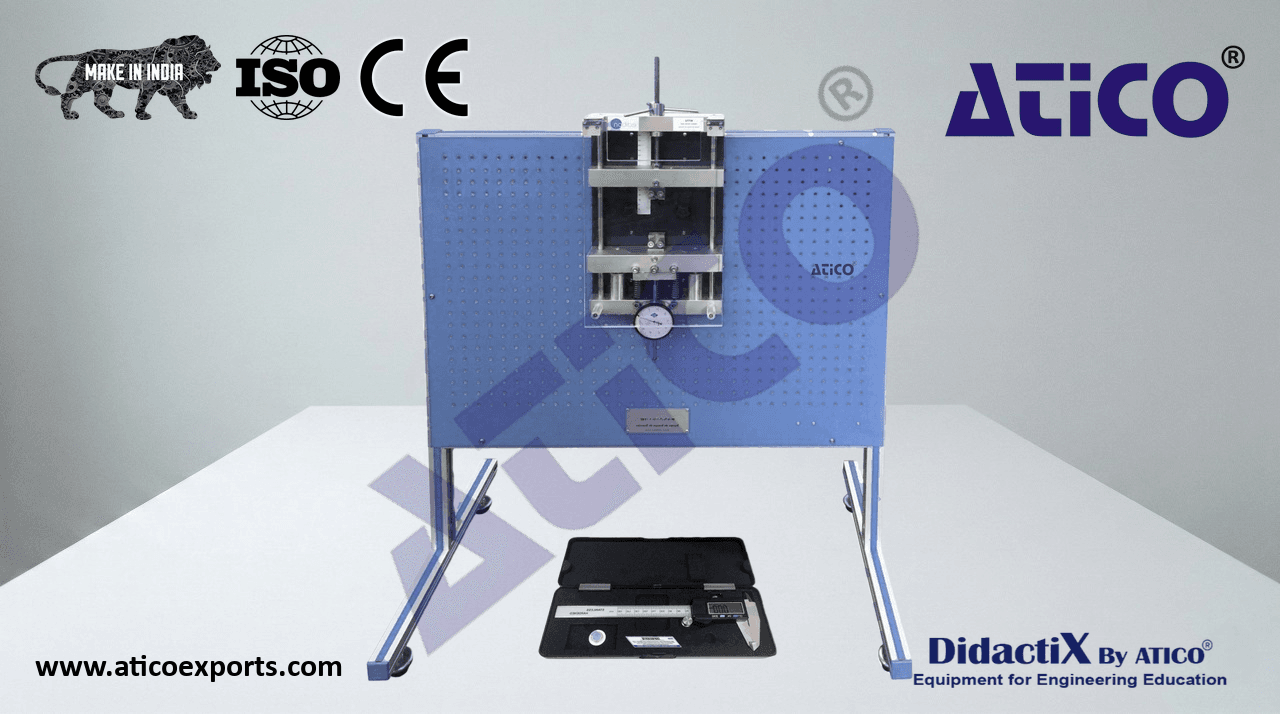

ATENG 12241 — Tensile Tester Unit
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Case and protector for the specimens.
- Structural panel of dimensions: 660 x 890 mm.
Two guide bars of stainless steel.
Protector for the specimen of PMMA.
Three springs.
- Dial gauge, range: 0 – 20 mm; accuracy: 0.01 mm.
Digital caliber.
- Test specimens:
- Twelve specimens made of S235JR steel (2 x 2 mm).
- Twelve specimens made of aluminum, purity 99.5 % (2 x 2 mm).
- Twelve specimens made of aluminum H-111, “Duralumin” (2 x 2 mm).
- Twelve specimens made of PVC (5 x 3 mm). ATENG 12241 detail
- Twelve specimens made of Nylon (2 x 2 mm).
