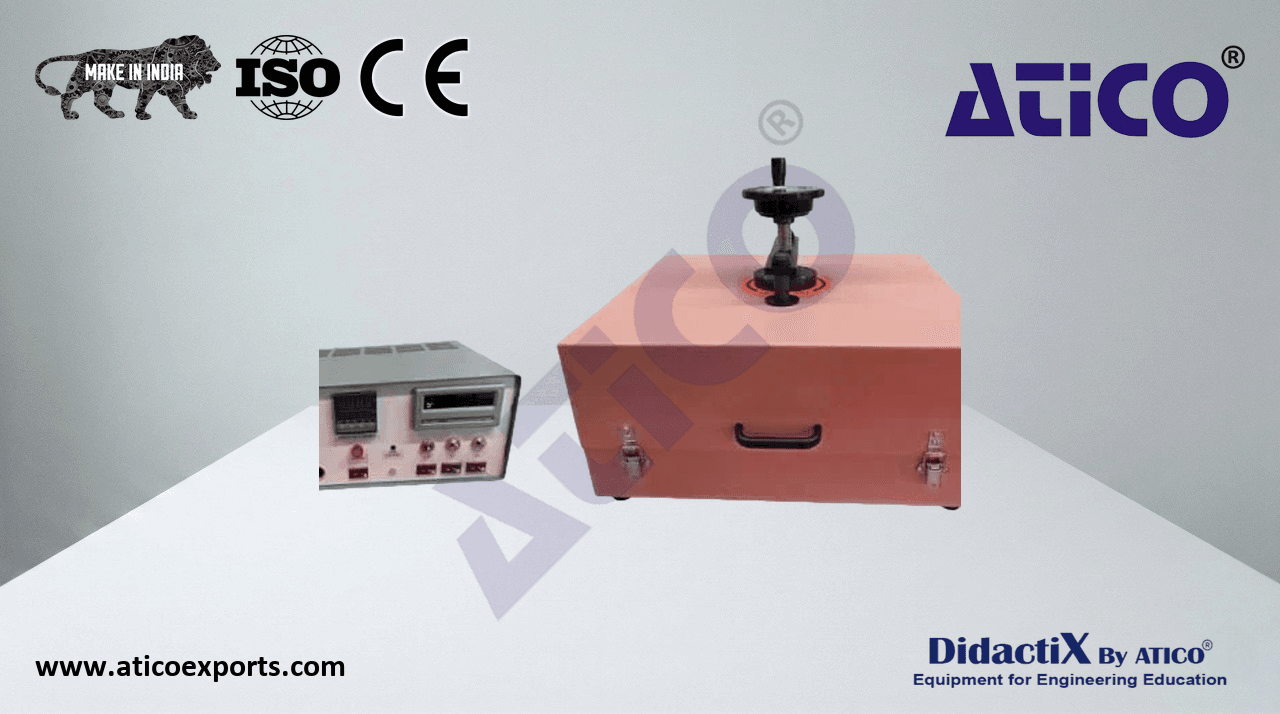

THERMAL CONDUCTIVITY of BUILDING MATERIAL UNIT

A bench top accessory designed to allow students to simply and easily investigate the relative thermal conductivities of typical building materials. The unit utilises a relative method of thermal conductivity measurement based upon an international standard (ISO 8301), using a PID controlled flat plate electrical heater and a water cooled flat plate with an integral and highly sensitive heat flowmeter. The specimen under test is sandwiched between the heated and cooled plates and contained in a thermally insulated enclosure to minimise heat losses. Learn about THERMAL CONDUCTIVITY of BUILDING MATERIAL UNIT exporters for optimal educational outcomes.. The loading system ensures a consistent clamping force across all specimens. Calibrated silicon mats are included to eliminate air gaps. Learn about Digital THERMAL CONDUCTIVITY of BUILDING MATERIAL UNIT for optimal educational outcomes.. The heat flowmeter gives an output to a digital panel meter on the dedicated control and instrumentation console. Special thermocouples measure mean temperatures either side of the test specimen, allowing the temperature gradient and hence the thermal conductivity to be determined. Learn about THERMAL CONDUCTIVITY of BUILDING MATERIAL UNIT heat-transfer India for optimal educational outcomes.. The thickness of the test sample may be measured in situ using the micrometer dial indicator. The unit allows thermal resistance of samples to be determined and supports measurement of samples connected in series (stacked). Learn about THERMAL CONDUCTIVITY of BUILDING MATERIAL UNIT price for optimal educational outcomes..

• Specimen: 300 x 300mm (up to 75mm thickness)
• Heater mat: 500W
• Maximum hot plate temperature: 70°C
• Calibrated silicon mat included
