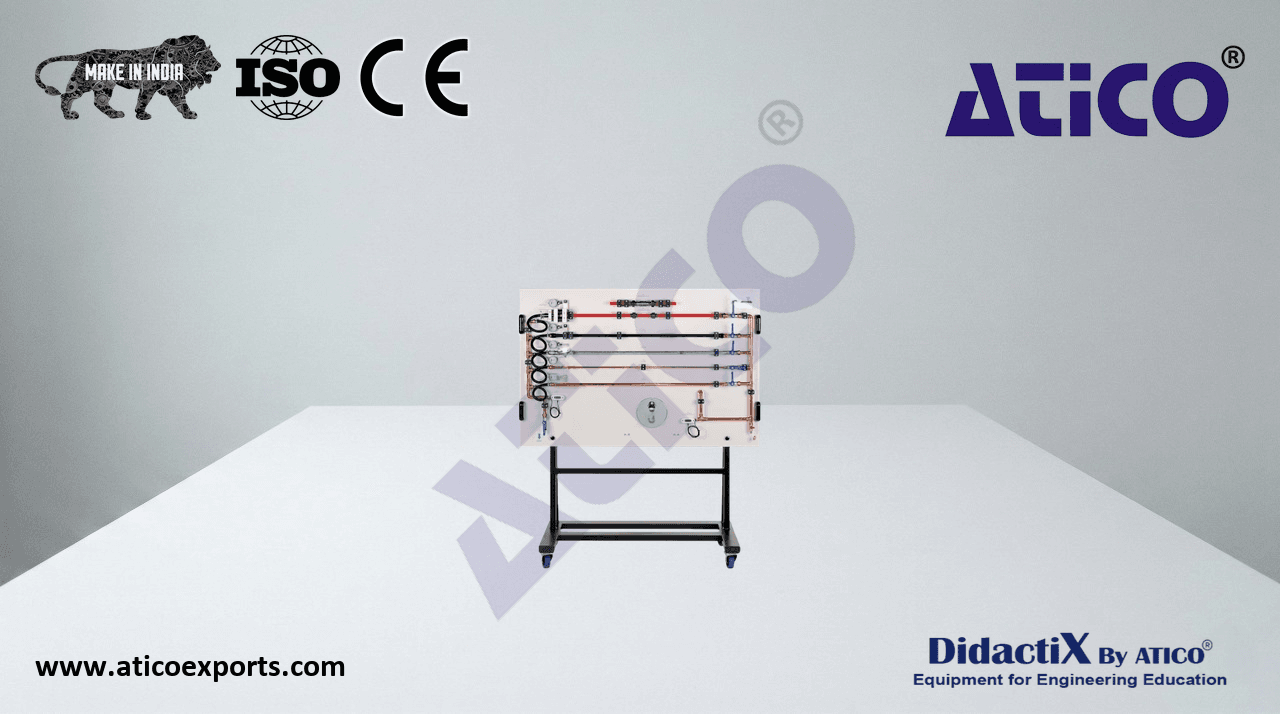

Thermal expansion training panel

The trainer comprises original components as used in heating and sanitation systems and is therefore relevant in practice.

• investigating the thermal expansion of different pipe sections
• pipe sections can be selected by ball valves
• water connections made using quick-release couplings
• operation with hot and cold water supplies
• adjustment of the water temperature using mixing battery with thermocouple
• temperature measurement using battery-operated digital thermometers
• force measuring device to determine the expansion force
