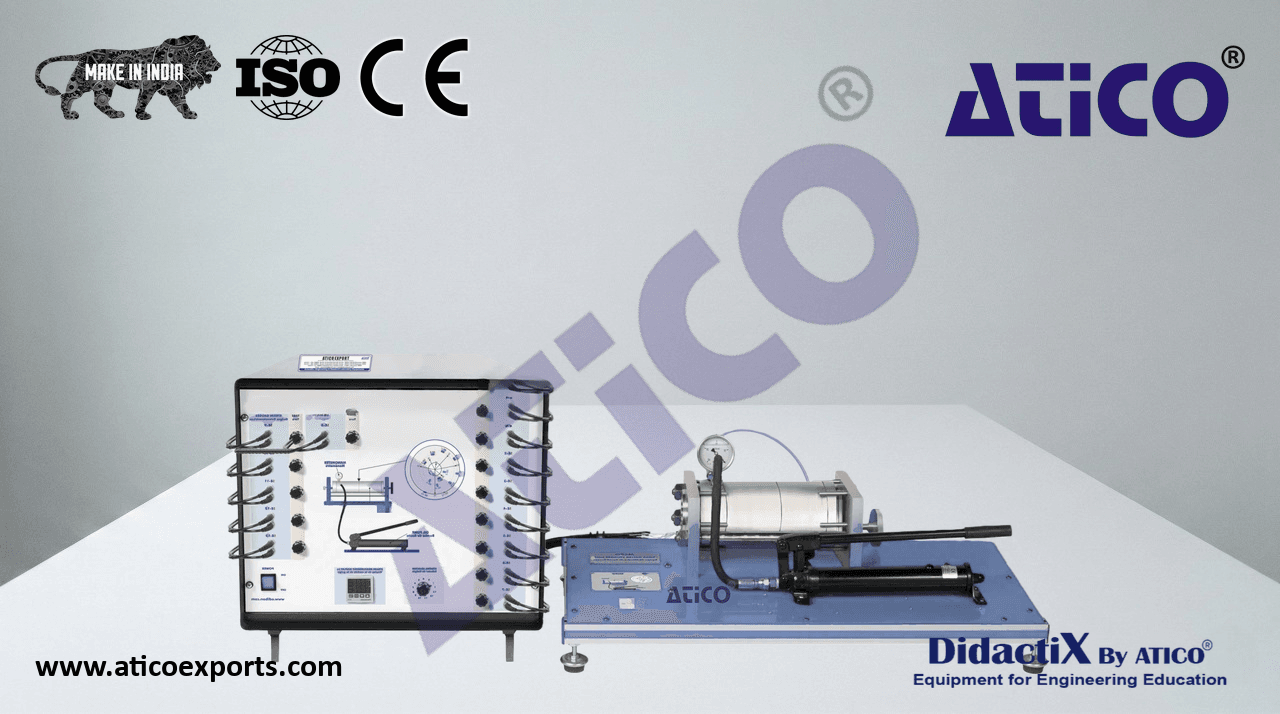

ATENG 12149 — Thick Walled Cylinder Unit
Bench-top unit with adjustable legs.
Anodized aluminum frame and panels made of painted steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The “ATENG 12149” unit mainly consists of:
- Cylinder made of an aluminum alloy:
- Length = 300 mm.
- Diameter = 140 mm.
ATENG 12149 detail
- Wall thickness = 50 mm.
- Internal pressure: max. 7 N/mm² (70 bar).
- Manometer, range: 0 – 100 bar (10 N/mm²).
- Hydraulic pump. Maximum pressure: 70 bar.
Reinforced coupling.
- Twelve strain gauges:
At different radii.
At the inner and outer surface of the cylinder.
- Electronic console:
Metallic box.
Connectors of the strain gauges.
Selector of the strain gauges.
Display of the strain gauges measurement.
Switch to tare the strain gauges measurement.
Main switch.
Cables and accessories, for normal operation.
