Thin Cylinder Unit Deluxe

The Thin Cylinder Unit, allows the study of the stress and strain in a thin wall cylinder under internal pressures.

ATENG 12145 — Thin Cylinder Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

Diagram in the front panel with distribution of the elements similar to the real one.

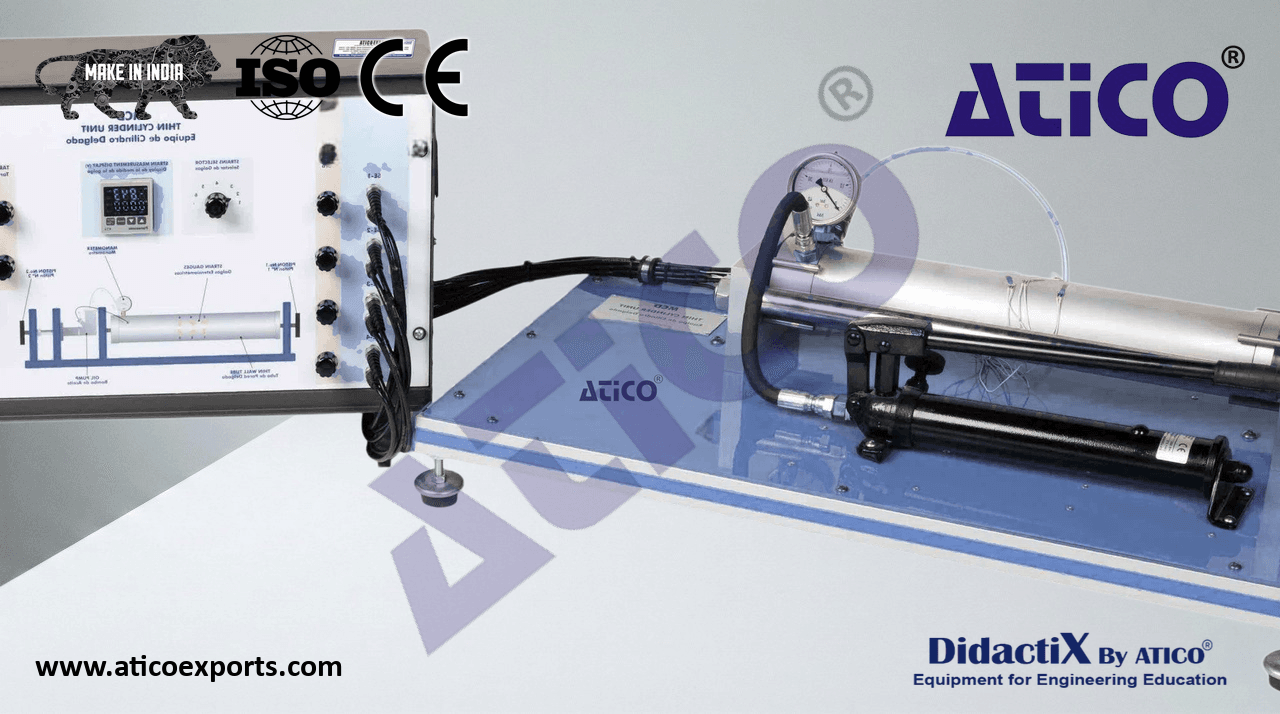

• The “ATENG 12145” unit mainly consists of:
• Cylinder made of an aluminum alloy:
  Modulus of elasticity = (65±5) • 10^6 [N/m²].
  Poisson's ratio = 0.34±0.04.
• Inside diameter = 70 mm.
• Length = 400 mm. ATENG 12145 detail
• Wall thickness = 3 mm.
• Manometer, range: 0 – 40 bar.
• Hydraulic pump:
• Capacity: 2.2 cm³.
• Maximum pressure: 40 bar.
• Safety pressure: 40 bar.
• Reinforced coupling. Maximum pressure: 40 bar.
  Six strain gauges.
• Electronic console:
  Metallic box.
  Connectors of the strain gauges.
  Selector of the strain gauges.
  Display of the strain gauges measurement.
  Switch to tare the strain gauges measurement.
  Main switch.
  Cables and Accessories, for normal operation.
