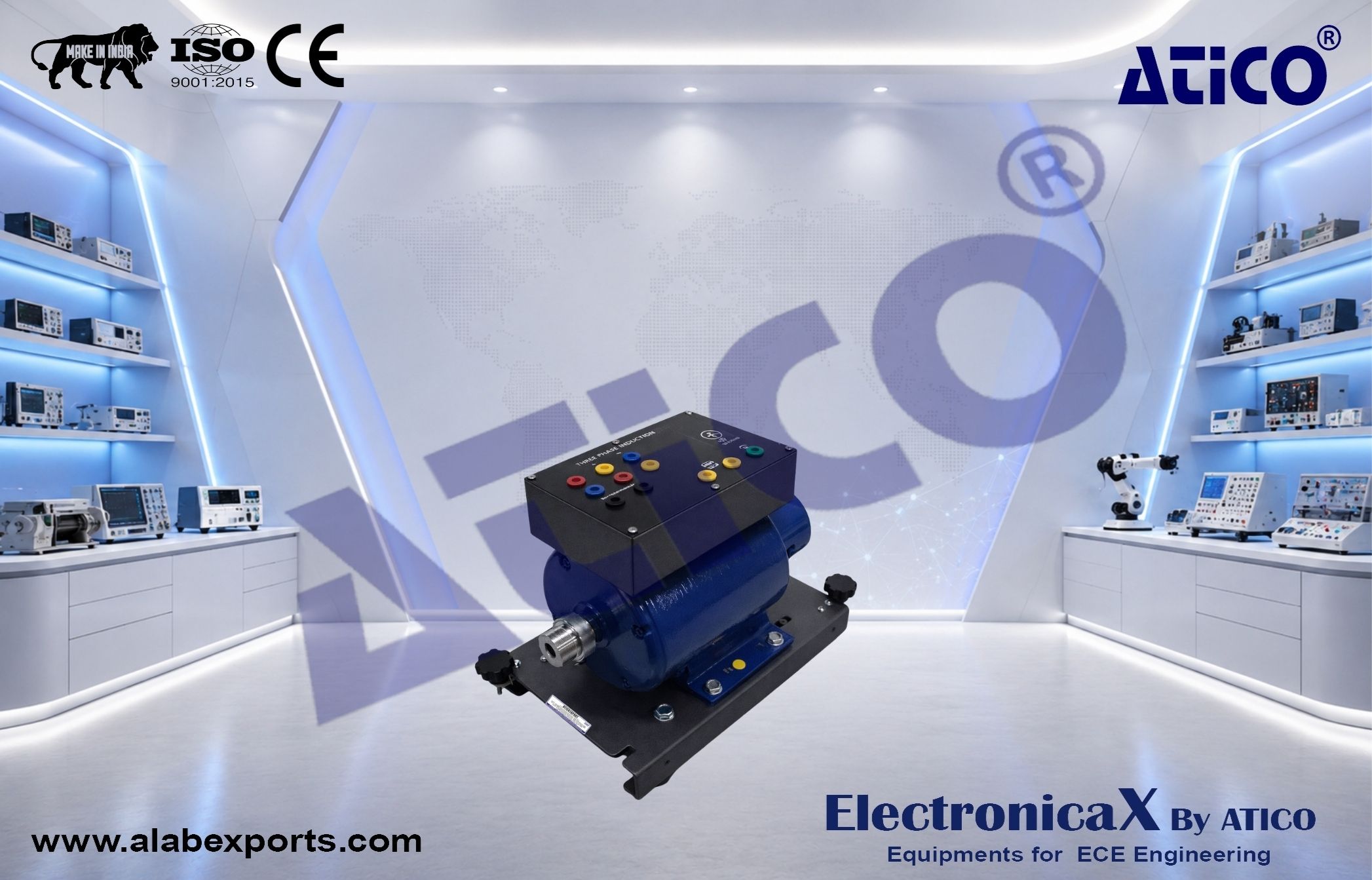

Three Phase Synchronous Machine 370W

Three phase synchronous machine with three phase winding both stator and rotor for operation as motor and generators.

Nominal Power:

• 370W / 1/2HP

Nominal Voltage:

• 240 / 415 V (Delta/Star)

Nominal Current:

• 1.5 / 1.0 A (Delta/Star)

Frequency:

• 50Hz

Nominal Speed:

• 1500 rpm

Excitation Voltage:

• 0 ~ 25 VDC

Excitation Current:

• 2.6 A

Winding Poles:

• 4

Terminals:

• 4mm Safety Socket

Coupling:

• Optional

Base Plate:

• Attachable To Break Load Unit / Generator Unit

Manual:

• Instructional & Experimental Manual Provided

Typical Experimental :

• Load test & No load test of machine
• Speed-Torque Analysis
• Voltage-Speed Analysis
• AC Motor Generator Test
• Star-Delta Starting (Three Phase 240VAC)
• Forward Reverse Starting
• Auto Transformer Starting
• Soft Starter Starting
• Variable Frequency Drive
• Torque Speed Characteristic Test
