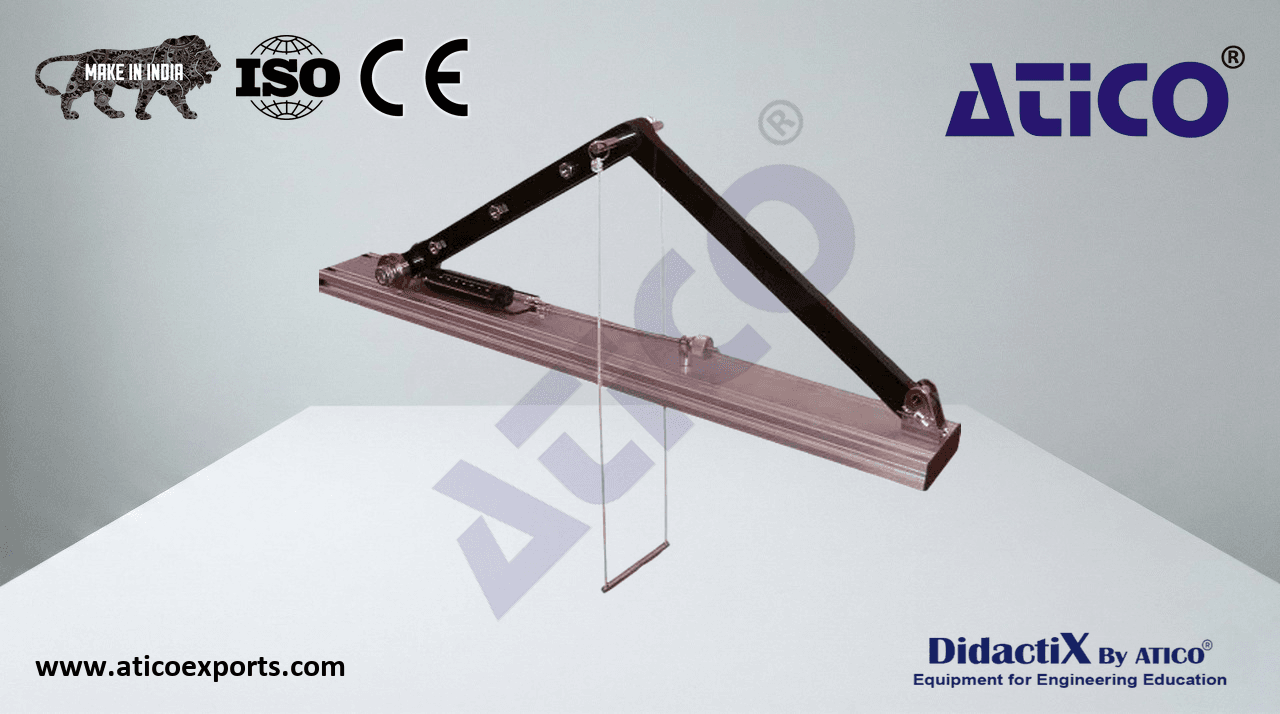

TOGGLE JOINT APPARATUS

This apparatus is designed to evaluate forces within a toggle mechanism. Load is applied to the two pairs of links by a hanger suspended from their connecting pivot. One end of the links is pivoted to a base, and the other end is able to move sideways on low friction ball bearing wheels. Learn about TOGGLE JOINT APPARATUS for educational labs for optimal educational outcomes.. The moving links are restrained by a horizontal spring balance, which measures the horizontal reaction directly. The angle of the toggle can be varied. Learn about TOGGLE JOINT APPARATUS equipment for optimal educational outcomes.. Adjustment is provided for returning the geometry of the loaded toggle to its original unloaded state before taking measurements. The supporting blocks are not supplied. Learn about TOGGLE JOINT APPARATUS forces-hfc India for optimal educational outcomes.. There are many ways in which the forces can be determined theoretically. The instruction manual provided with the apparatus introduces the use of velocity diagrams to solve essentially static problems by considering virtual motion, though other techniques can be used if desired. Learn about TOGGLE JOINT APPARATUS manufacturers for optimal educational outcomes..

• Link length: 270mm
• Spring balance: 6kgf range, 0.1kgf resolution
• Weights set: 6 x 5N
• 1 x Load hanger
