TORSION AND DEFLECTION TESTING APPARATUS

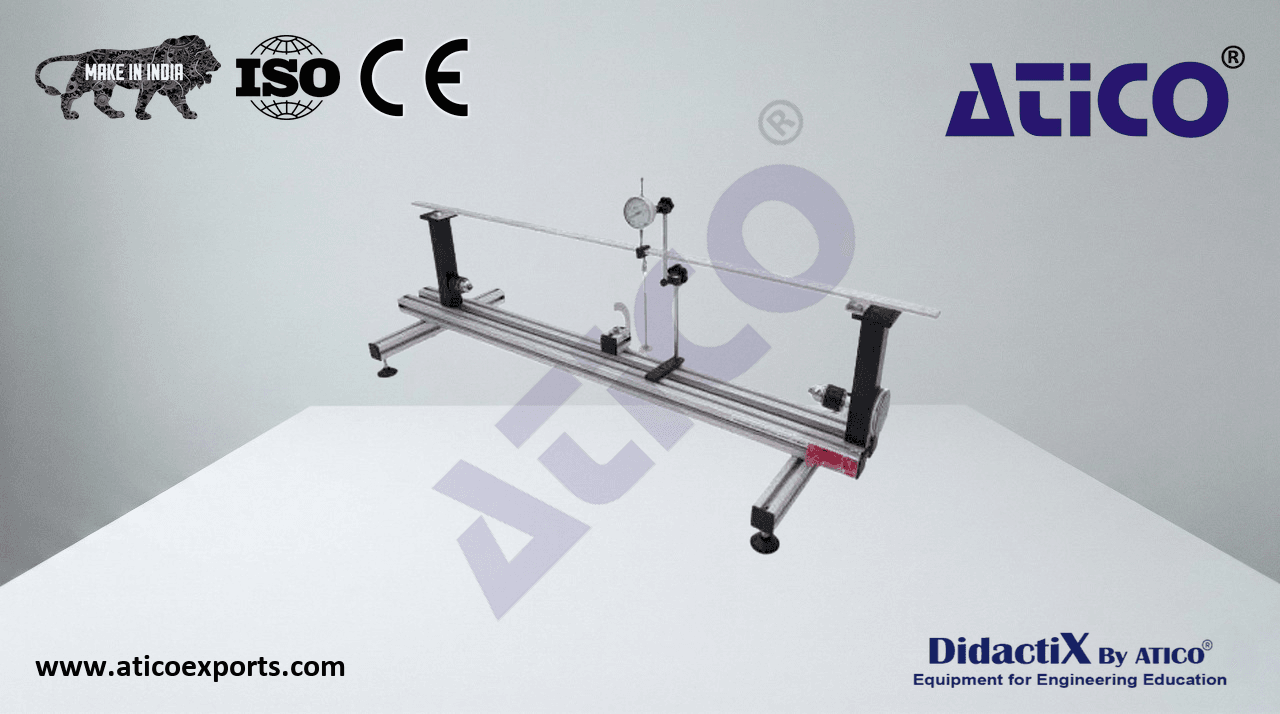

This bench-top unit allows a variety of experiments investigating torsional and bending loading of test specimens within their elastic limits. An extruded base frame carries two solid vertical supports with profiled grooves, fasteners, and quick-release handles for easy span adjustment. One vertical support carries a unique specimen chuck with a through hole; another chuck is held stationary at one end of the base frame. Learn about TORSION AND DEFLECTION TESTING APPARATUS suppliers for optimal educational outcomes.. The chucks secure torsion specimens and transmit torsional loading via a pulley and cord arrangement mounted on a shaft running in low-friction bearings. The chuck through hole allows variation of the torsion specimen length. Learn about TORSION AND DEFLECTION TESTING APPARATUS for educational labs for optimal educational outcomes.. Twist is indicated on an angle indicator and pointer which can be moved along the specimen. The remaining vertical support is used for bending tests, with each support offering a top clamp to vary end conditions between clamped, simply supported on knife edges, or on ground dowels. Learn about TORSION AND DEFLECTION TESTING APPARATUS manufacturers for optimal educational outcomes.. Span can be varied by moving the supports along the base frame. A dial gauge on a movable stand measures bending specimen deflection anywhere within the beam span. Learn about TORSION AND DEFLECTION TESTING APPARATUS price for optimal educational outcomes.. A full set of torsion and bending specimens, load hangers, and calibrated weights are supplied.

Torsion Specimens: Ø5.00 ±0.05mm × 470mm long — steel, aluminium, brass, and nylon

Bending Specimens: 1200mm long — steel, aluminium, and brass; cross-sections:

• 25.4(W) × 3.18(H) mm
• 25.4(W) × 4.76(H) mm
• 25.4(W) × 6.35(H) mm
• 19.05(W) × 3.18(H) mm

Other:

• Load hangers × 2
• Dial gauge × 1: 25mm travel, 0.01mm resolution, with precision anvil
• Movable stand for dial gauge × 1
• Tape measure × 1
• Clamp plates for cantilevers × 2
• Pointer and protractor × 2
• Knife edges and ground dowels for simply supported conditions
• Torsion shaft running in bearings
