TORSION OF RODS AND TUBES

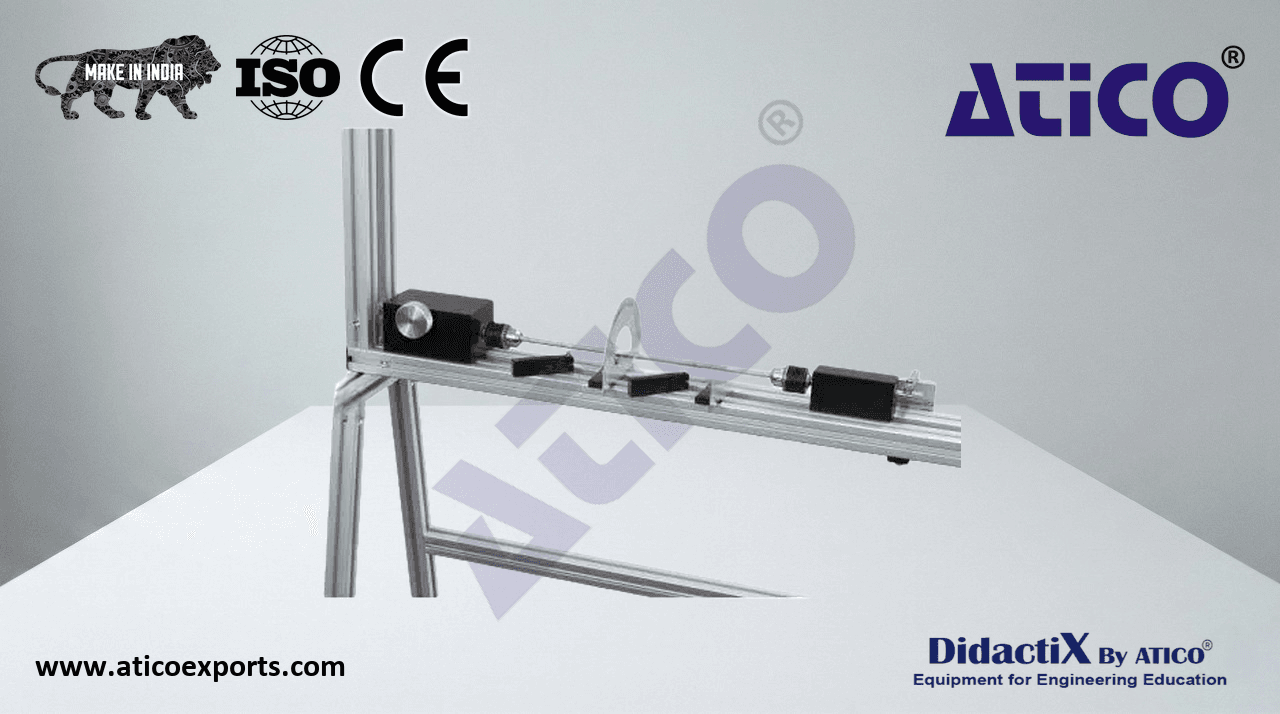

The apparatus comprises a torsion head at one end and a fixed tailstock at the other, between which a variety of torsion specimens are held in three-jaw chucks. Fine rotational movement in each direction allows accurate alignment of specimens. The torsion head chuck is mounted on a bearing shaft, rotated via a thumbwheel and fine worm/wheel gearing mechanism. Learn about TORSION OF RODS AND TUBES for educational labs for optimal educational outcomes.. An integral load cell records the torque force applied, while an angular position sensor monitors the angular twist. Signals feed directly into a digital interface (sold separately). Learn about TORSION OF RODS AND TUBES specifications for optimal educational outcomes.. Specimens include tubes, solid rods, square section tube, and a slit tube in aluminium and acrylic.

• Solid specimen: Ø9.5 × 432 mm
• Tube specimen: Ø9.5 × Ø6.3 × 432 mm
• Slit tube specimen: Ø9.5 × Ø6.3 × 1 mm slit × 432 mm
• Acrylic specimen: Ø10 × 432 mm
• Square specimen: 12.7 × 12.7 × 1.5 × 432 mm
• Load cell: 0–500 N
• Angle sensor: 300°
• Protractor: 180° × 1° resolution
