Torsion Test Unit (30Nm)

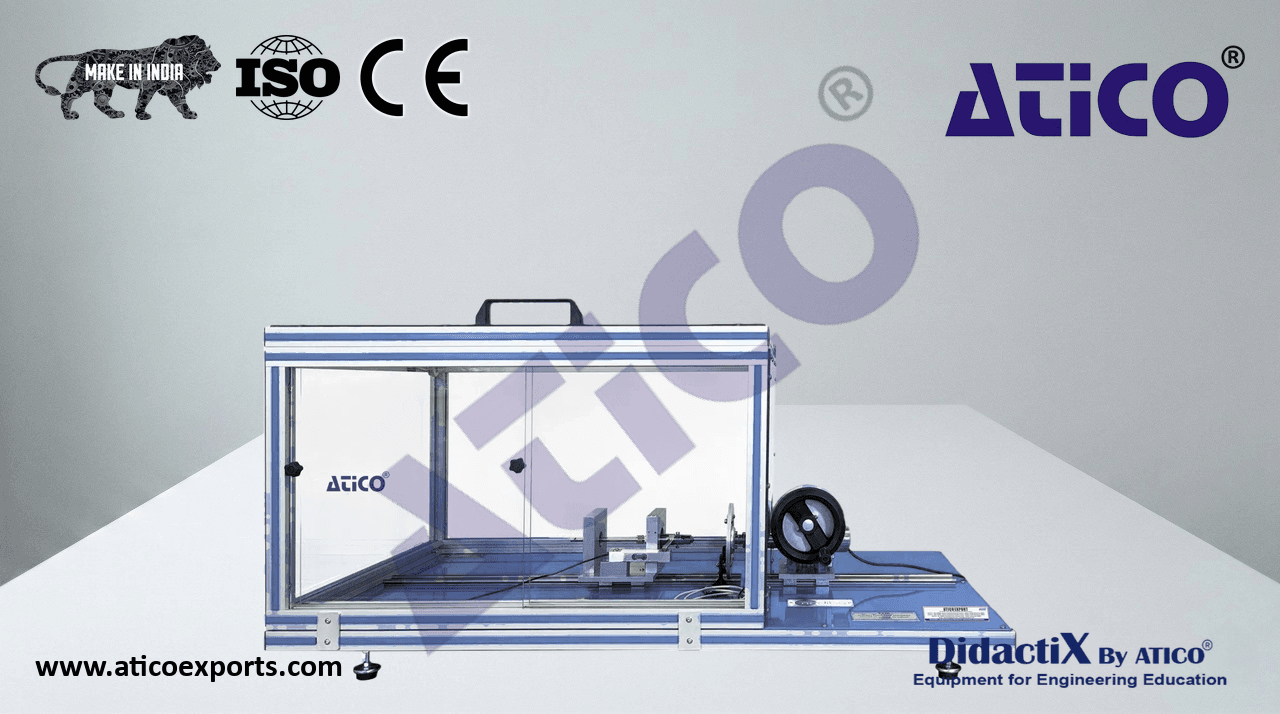

The Torsion Test Unit (30Nm), allows to test the fundamentals of torsion in bars, of different lengths and different materials, subjected to torsional loading until shear fracture.

ATENG 12239 — Torsion Test Unit (30Nm)

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Handwheel and worm gear to generate the torsion load.

• Maximum moment of torsion: 30 Nm.
• Test specimens of different lengths and materials of 6 mm diameter:
• 4 steel specimens of L = 75 mm.
• 4 brass specimens of L = 75 mm.
• 4 aluminum specimens of L = 75 mm.
• 2 steel specimens of L = 175 mm. ATENG 12239 detail
• 2 steel specimens of L = 350 mm.
• 2 steel specimens of L = 700 mm.
• Measuring device with self-compensation of deformation:
• Strain gauges for measuring moment of torsion, range: 0 – 30 Nm.
• Torsion angle sensor, range: 0 - ±3200°, resolution: 0.1°.
  Transparent protective cover.
  Software for data acquisition.
• Electronic console:
  Main switch.
  Moment of torsion display.
  Torsion angle display.
