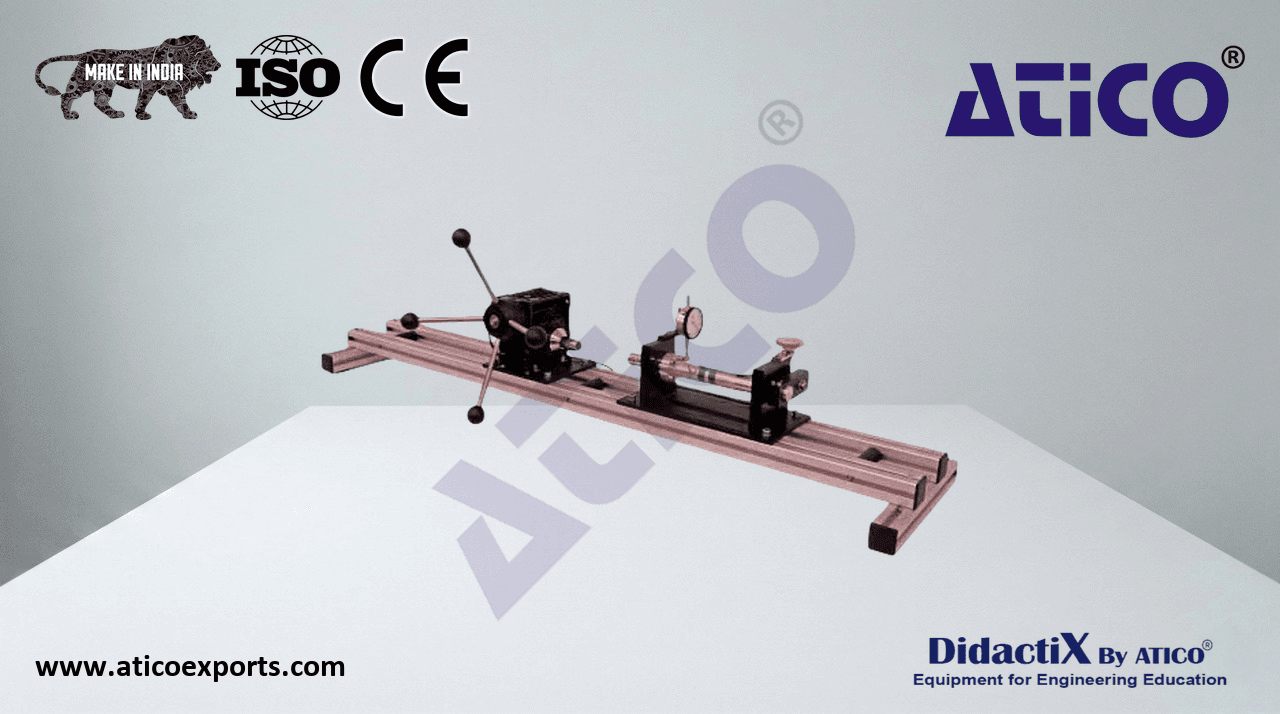

TORSION TESTING MACHINE (30Nm)

A sturdy bench-top mounted unit for applying torque to failure on metal specimens. Up to 30Nm torque is applied via the moment head to test specimens using a hand-operated worm and wheel gearbox (60:1 ratio). The unit accommodates specimens up to 750mm between the moment head and torsion head. Learn about TORSION TESTING MACHINE (30Nm) strength-materials-hsm India for optimal educational outcomes.. The moment head is fixed while the torsion head can be moved along the base for different specimen lengths. Specimen length change is not restricted during testing. Learn about TORSION TESTING MACHINE (30Nm) manufacturers for optimal educational outcomes.. Standard hexagon drives transmit torque into the specimens. The angular position of one end of the specimen can be adjusted before and during the experiment using the adjustment mechanism on the torsion head, referenced by an integral dial gauge. Learn about TORSION TESTING MACHINE (30Nm) specifications for optimal educational outcomes.. Strain gauge technology within the torsion head feeds output directly to the digital display. Supplied software captures and stores data for further processing and printout. Learn about TORSION TESTING MACHINE (30Nm) for educational labs for optimal educational outcomes..

• Torsion capacity: 30Nm
• Bench-top unit with sturdy extruded base frame
• 18 test specimens: steel (×6), aluminium (×6), brass (×6)
• Specimen hex ends: 17mm A/F
• Test diameter: Ø6mm nominal
• Maximum specimen length: 750mm
• Loading via 60:1 worm/wheel gearbox, hand operated
• Digital display: torque resolution 0.1Nm; angle resolution 0.1°
• Analogue dial gauge: 10 or 25mm range, 0.01mm resolution
