The Torsional Oscillations Unit, is intended for easy experiments. It enables to illustrate and investigate the torsional oscillation in single rotor, multi-rotor and geared systems.
Technical Specifications

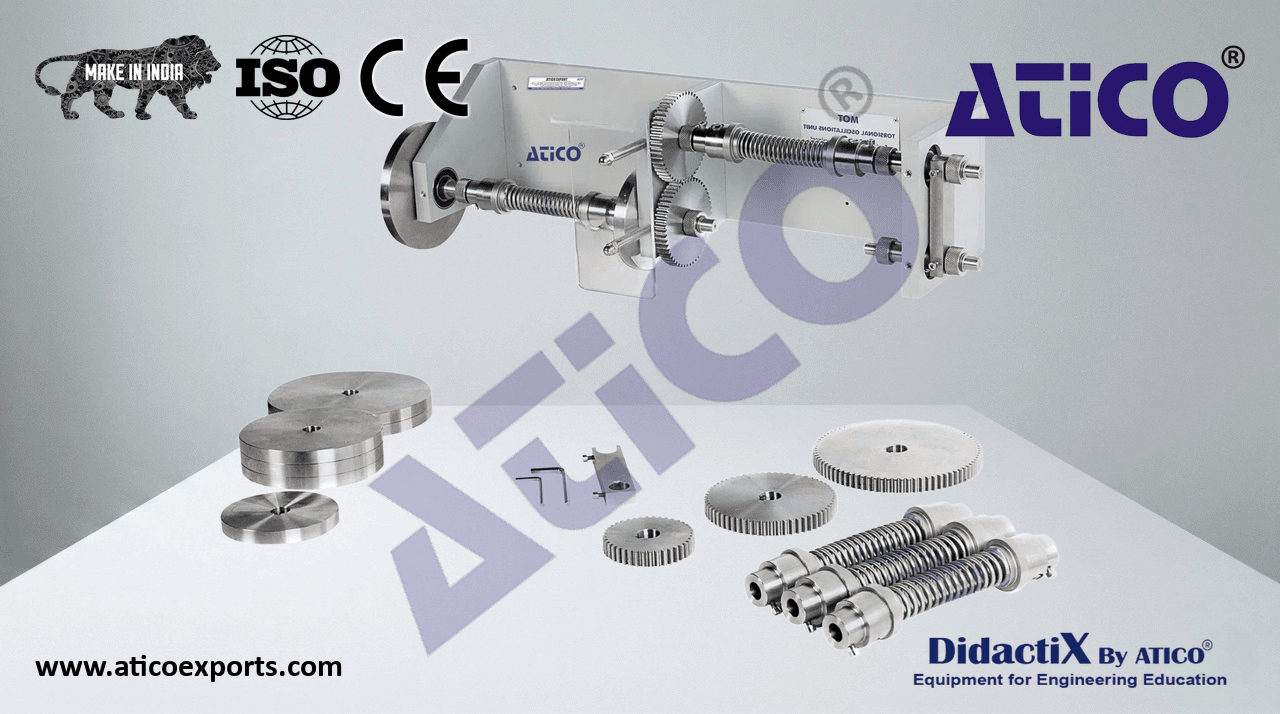

ATENG 12124 — Torsional Oscillations Unit
The “ATENG 12124” unit mainly consists of:
Steel structure to place the different elements of the unit.
Six helicoidal torsion springs of different torsion constant:
Two springs of 2 Nm/rad (approx.)
Two springs of 8 Nm/rad (approx.)
Two springs of 24 Nm/rad (approx.)
Eight stainless steel discs of different diameter:
Two discs of 200 mm of diameter.
Four discs of 160 mm of diameter.
Two discs of 120 mm of diameter.
Six stainless steel gears with different number of teeth:
Gear of z = 20.
Gear of z = 40.
Two gear of z = 50. ATENG 12124 detail
Gear of z = 60.
Gear of z = 80.
Closure plates.
Protective plate.
Fastening and anchoring elements.
Tools required to change the elements.
Unit provided with brackets to be suspended in the wall or in a frame.
