TORSIONAL VIBRATION APPARATUS

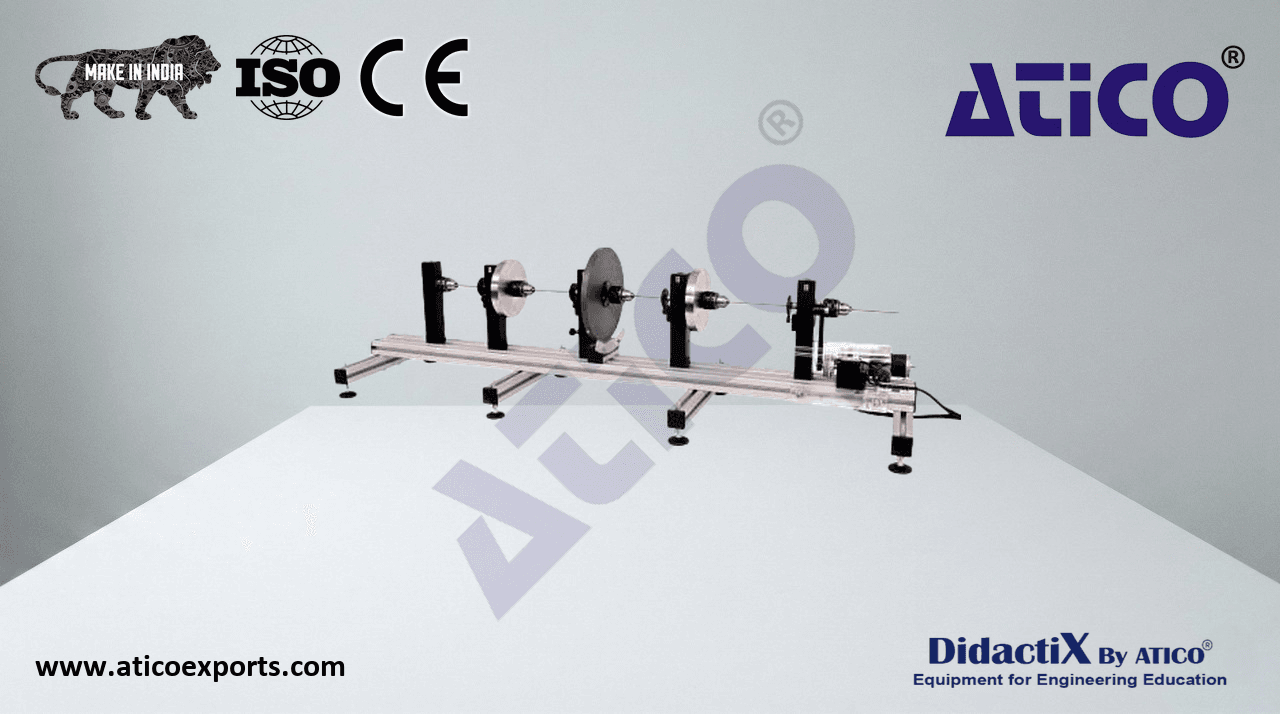

A bench top unit for studying torsion and torsional vibration, constructed around a profiled aluminium base with levelling feet and four vertical chuck pillars. Each pillar contains a central shaft running in precision bearings with a chuck that grips a torsion specimen. Each chuck also carries a large disc of varying mass and inertia, enabling assembly of a torsion specimen with up to three masses. Learn about TORSIONAL VIBRATION APPARATUS vibration India for optimal educational outcomes.. Vibrations are transmitted into the specimen via an electronically speed-controlled exciter. A fifth chuck rigidly clamps the specimen end to achieve a fixed end condition. Learn about TORSIONAL VIBRATION APPARATUS specifications for optimal educational outcomes.. A manual torsion arrangement allows a known angular twist to be applied using a cord, load hanger and weights set, enabling calculation of the modulus of rigidity. Oscillation sensors are mounted integrally with each mass pillar and feed signals to a digital oscilloscope for vibration analysis. Learn about TORSIONAL VIBRATION APPARATUS price for optimal educational outcomes..

• Torsion specimen: Stainless steel, 1300 mm long × Ø6 mm
• Crank offset: approx. 0.15 mm
• Excitation frequency: Up to 20 Hz
• Inertia disc (steel): 2 × 20 mm thick × Ø150 mm
• Inertia disc (plastic): 1 × 15 mm thick × Ø228 mm
• Weights: 6 × 5 N
