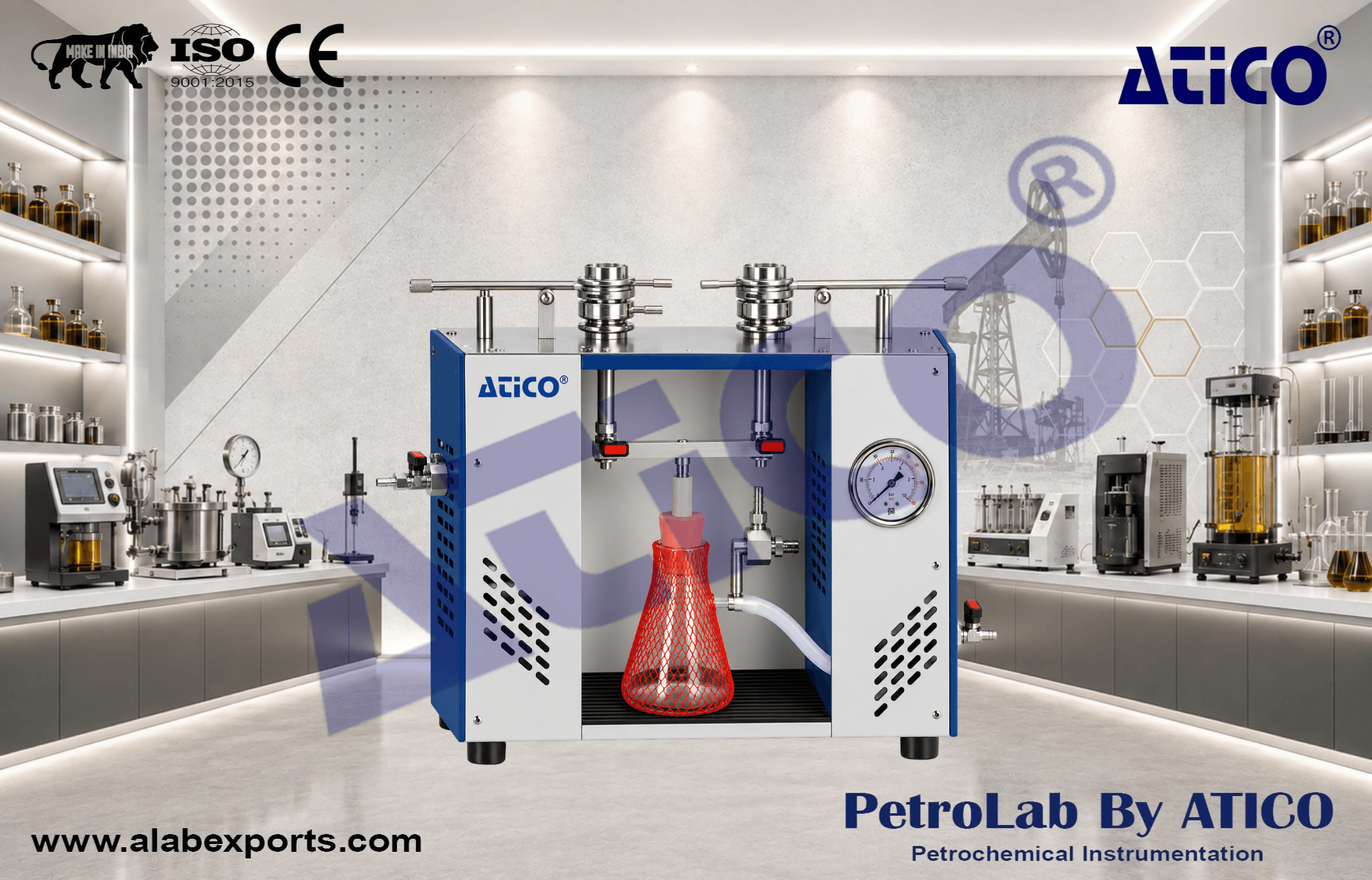

Total Sediment Tester for Oil Fuel and Petroleum Testing Instruments

The Total Sediment Tester determines total sediment content up to 0.40% m/m in distillate fuel oils containing residual components and up to 0.50% m/m in residual fuel oils with a maximum viscosity of 55 cSt (mm²/s) at 100°C. The test involves filtering a weighed quantity of 10 g of the oil sample through the prescribed apparatus at 100°C. After solvent washing and drying, the sediment retained on the filter medium is weighed. The method can also assess total sediment following fuel pretreatment regimes designed to accelerate the aging process. Some fuels may exceed the specified maximum filtration time due to factors other than significant quantities of insoluble organic or inorganic material. Manufactured by Atico Export with a focus on precision, durability, and reliable performance for petroleum fuel sediment testing applications.

Testing Range:

• Distillate fuel oils containing residual components: Up to 0.40% m/m total sediment
• Residual fuel oils: Up to 0.50% m/m total sediment
• Maximum fuel viscosity: 55 cSt (mm²/s) at 100°C
• Sample quantity: 10 g
• Filtration temperature: 100°C

Filtration System:

• Two filtration cells
• Throttle valve for vacuum regulation
• Heating or cooling coil
• Pipes for steam, water, and vacuum
• 500 mL flask fitted with protective mesh

Dimensions (L × W × H):

• 23.6 × 19.7 × 20.9 inches (60 × 50 × 53 cm)

Net Weight:

• 41.89 lb (19 kg)
