Training system pressure control, HSI

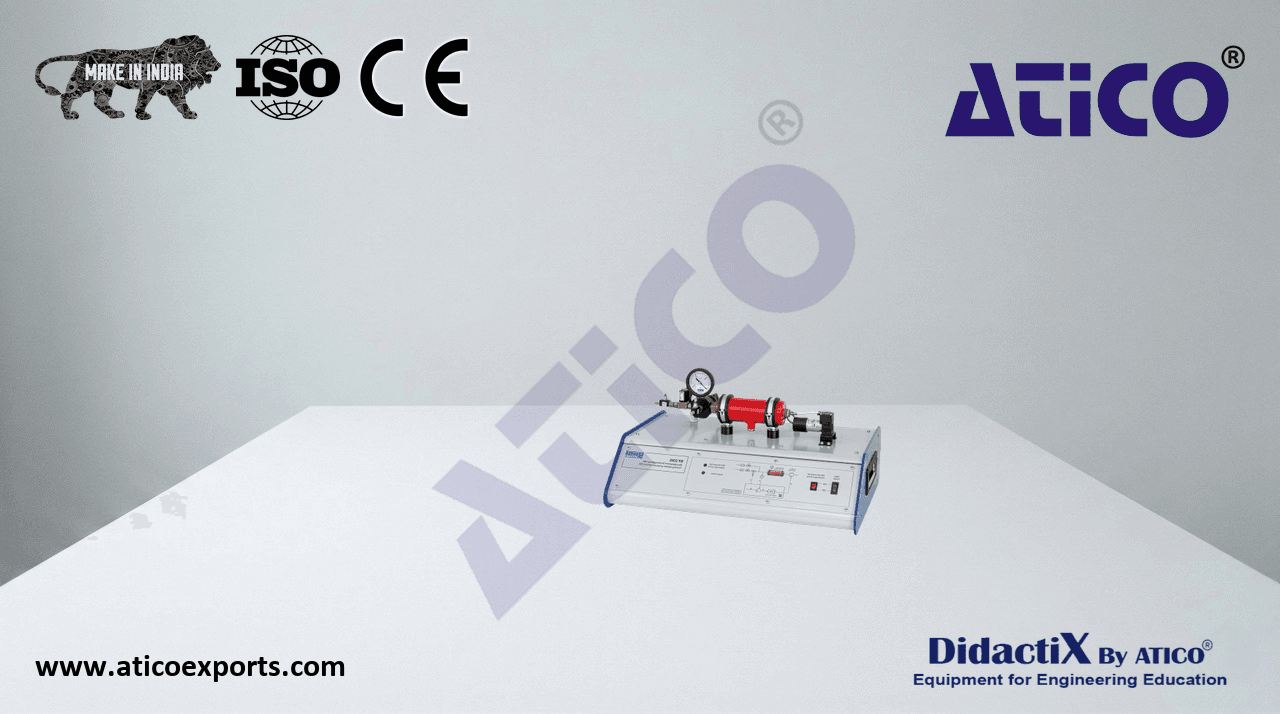

The RT 030 device offers basic experiments on a pressure controlled system. An air-filled pressure vessel is used as the controlled system. The pressure in the pressure vessel represents the controlled variable, which is determined by a measuring element, in this case a pressure sensor. Learn about Training system pressure control, HSI suppliers for optimal educational outcomes.. The output signal from the sensor is fed to the software controller. The output signal from the controller influences the manipulating variable, in this case the compressor speed. Learn about Training system pressure control, HSI specifications for optimal educational outcomes.. This changes the flow rate. A flow control valve acts as a pneumatic consumer. Learn about Training system pressure control, HSI for educational labs for optimal educational outcomes.. The software is used to switch a solenoid valve on and off in order to study the effect of disturbance variables. This activates a second flow control valve, which represents a second consumer. Learn about Training system pressure control, HSI price for optimal educational outcomes.. The control response is displayed in the form of a time dependency. There is a dial-gauge manometer located on the pressure vessel, allowing the pressure to be read at any time. Learn about Training system pressure control, HSI manufacturers for optimal educational outcomes..

• pressure control: typical controlled system
• controlled system: pressure vessel
• controlled variable: pressure
• measuring element: electronic pressure sensor
• software controller can be configured and parametrised as P, PI, PID and switching controller
• actuator: speed-controlled diaphragm gas pump
• disturbance variable generated via solenoid valve with downstream fixed-setting flow control valve as additional drain
• dial-gauge manometer for observing the pressure
• software simulation: various controlled systems
• software: option to connect any number of external workstations on the local network to follow and analyse the experiment
• experiment preparation and software simulation at any number of workstations for remote learning
• software with control functions and data acquisition via USB under Windows 11
• multimedia instructional materials online in Media Center
