Training system speed control, HSI

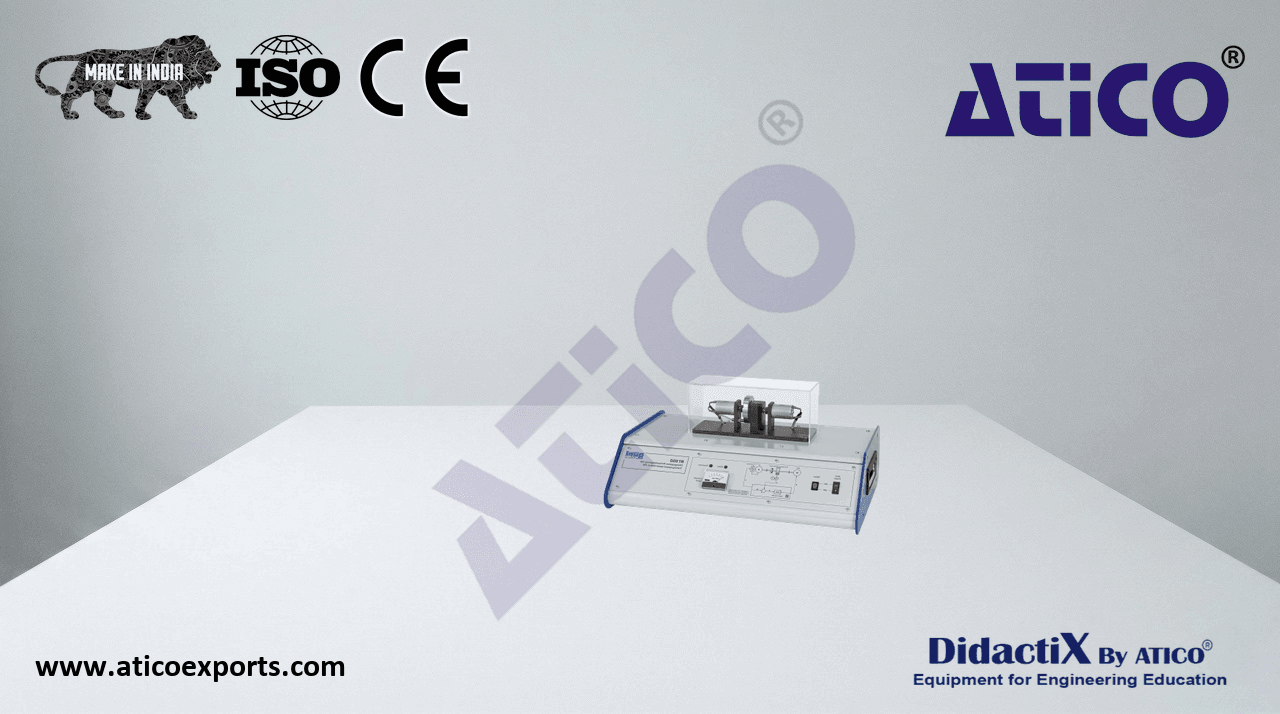

The RT 050 device offers basic experiments on a speed controlled system. A shaft with a flywheel is used as the controlled system. The speed represents the controlled variable, which is determined by a measuring element, in this case an inductive speed sensor. Learn about Training system speed control, HSI price for optimal educational outcomes.. The output signal from the sensor is fed to the software controller. The output signal from the controller influences the actuator, in this case a motor, which causes the shaft to rotate. Learn about Training system speed control, HSI equipment for optimal educational outcomes.. Switchable resistors are connected as a load to a generator, which is also located on the shaft. The software is used to generate different loads in order to study the effect of disturbance variables. Learn about Training system speed control, HSI specifications for optimal educational outcomes.. In this way, the speed of the shaft can be influenced. The control response is displayed in the form of a time dependency. Learn about Training system speed control, HSI suppliers for optimal educational outcomes.. There is a speed indicator located on the flywheel, allowing the speed to be read directly at any time. A transparent protective cover allows the experiments to be observed safely. Learn about Training system speed control, HSI for educational labs for optimal educational outcomes..

• speed control: typical controlled system
• controlled system: shaft with flywheel
• controlled variable: speed
• measuring element: inductive speed sensor
• software controller can be configured and parametrised as P, PI, PID and switching controller
• actuator: motor
• disturbance variable generated via adjustable load (resistors) on the generator
• transparent protective cover over motor, shaft and generator
• speed indicator for observing the speed
• software simulation: various controlled systems
• software: option to connect any number of external workstations on the local network to follow and analyse the experiment
• experiment preparation and software simulation at any number of workstations for remote learning
• software with control functions and data acquisition via USB under Windows 11
• multimedia instructional materials online in Media Center
