EXPERIMENT: TRANSISTOR AMPLIFIER IN CE CONFIGURATION & TRANSISTOR AMPLIFIER IN CC CONFIGURATION
EXPERIMENT SETUP CONSISTS OF:

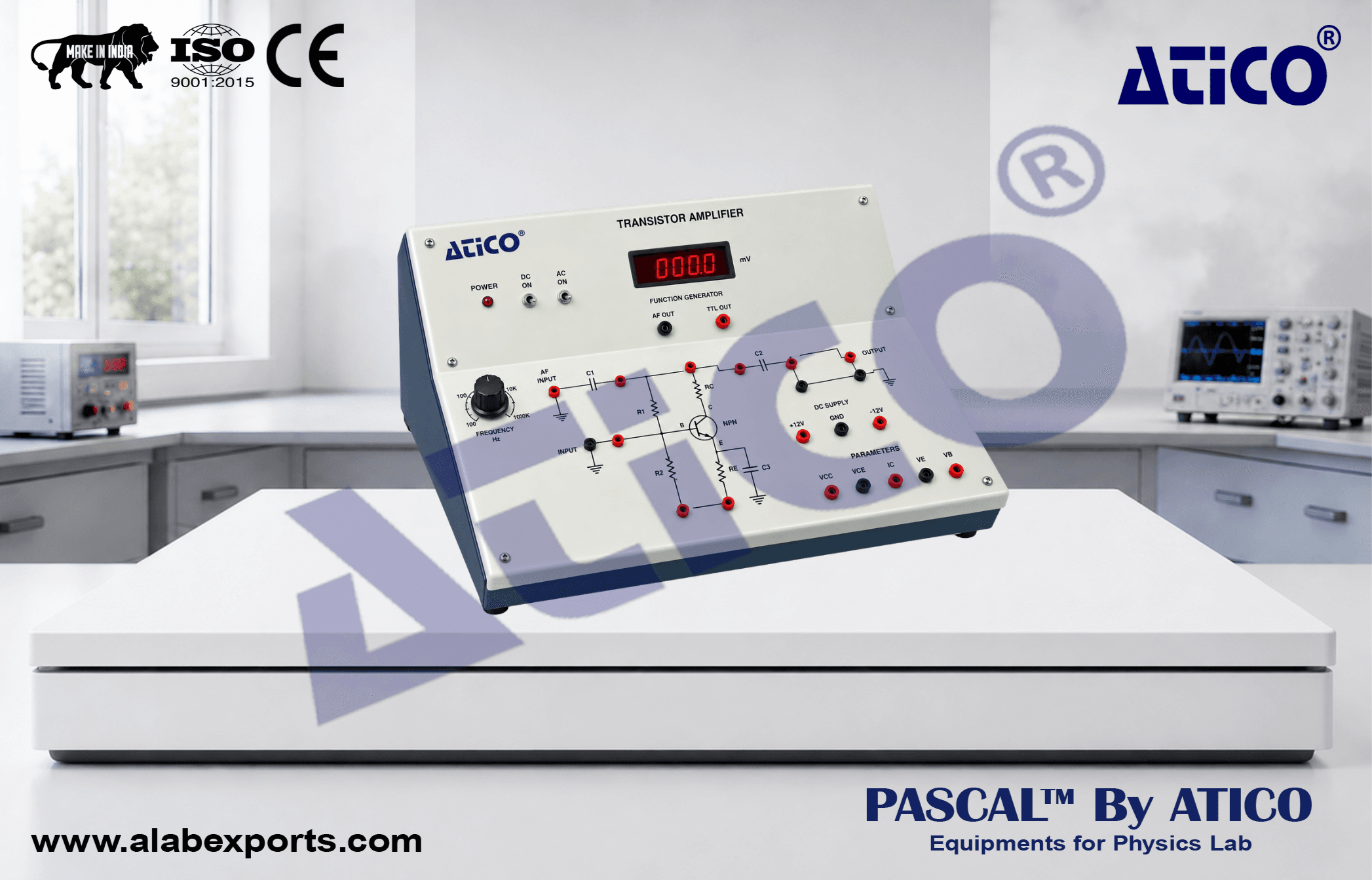

- Transistor Amplifier Kit – Digital AC voltmeter 0–20 V, wide band measures up to 200 kHz AC signal, DC power supply 12 V, transistor BC-547 (set of 2), set of known-value resistors and potentiometer to vary gain, set of capacitors for feedback
- Signal Generator – Microcontroller-based digital signal generator producing frequency up to 1 MHz, 20 V p-p output in sine, square, triangular and pulse waveforms, digital display for frequency and waveform display
Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.
