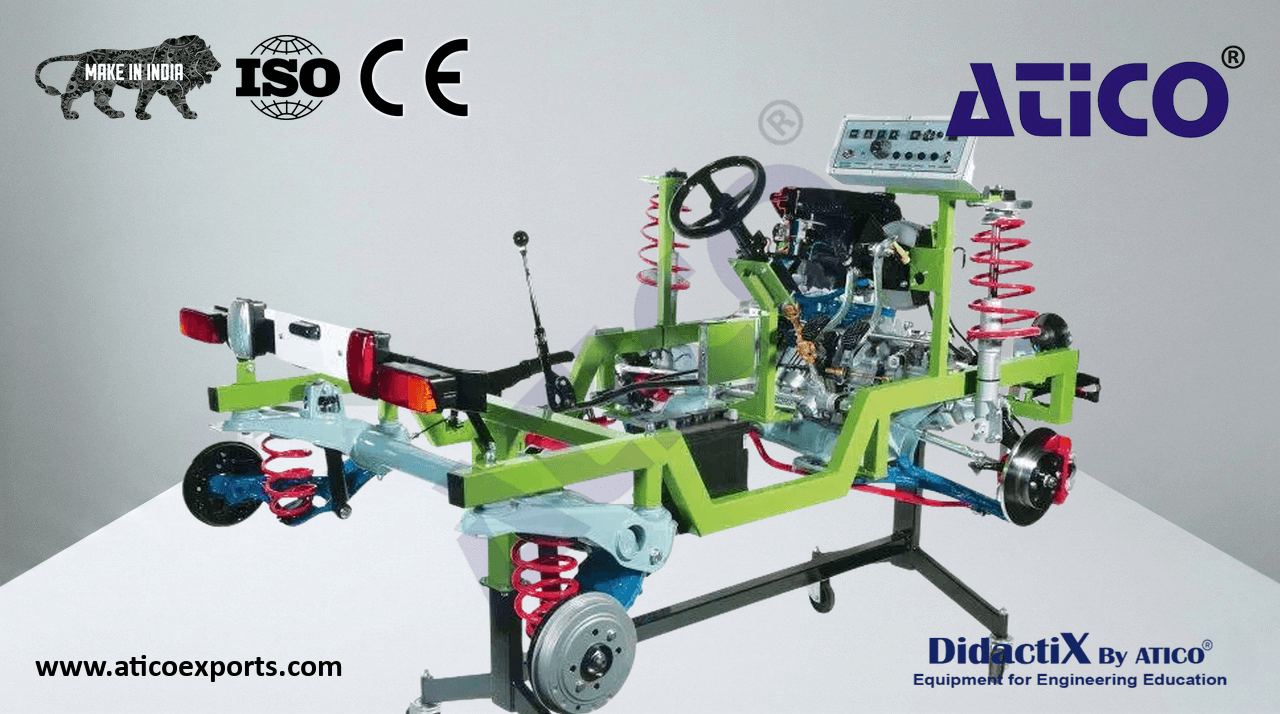

Turbo Diesel Engine Chassis, FWD with Lighting System

This chassis cut-away features FWD and a transversely mounted turbo diesel engine with working lighting system. This chassis cut-away features FWD and a transversely mounted turbo diesel engine with a working lighting system.

Specifications

• FWD chassis (engine transversely mounted)
• Diesel engine displacement: 1700 cu. cm. ; 4 cylinders
• Indirect injection with pre-chamber
• Rotary injection pump
• Turbo-compressor with waste-gate valve
• Gearbox: 5 forward speeds + reverse + differential
• Hydraulic power steering with double-jointed steering column
• Radiator with electric fan
• Front disc brake
• Rear drum brake
• Independent wheels MacPherson front suspension with oscillating arms
• Rear independent suspensions with coil spring and gas shock absorbers
• Front and rear working light system controlled by a dashboard
• Mounted on a sturdy stand with wheels
• Electrically operated at 120V

Weight And Dimensions

Size: 220cm x 160cm x 115cm (L x W x H) Net Weight: 400 Kg Gross Weight: 545 Kg.
