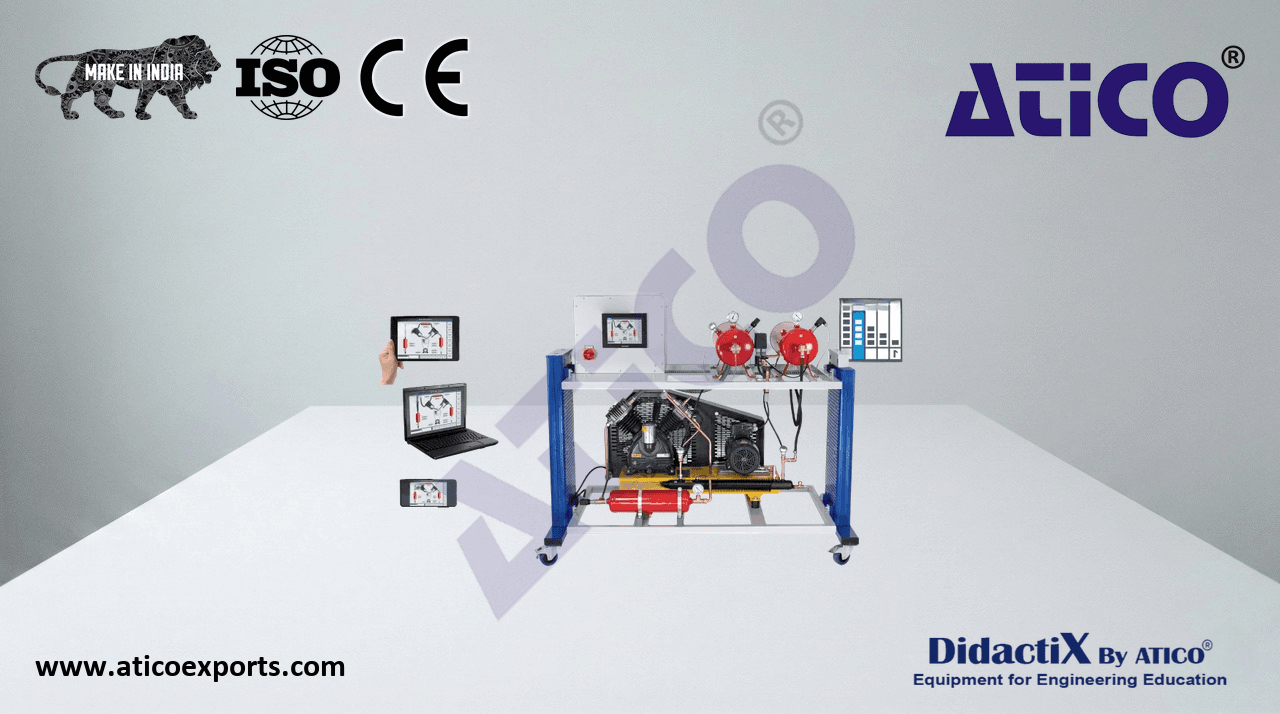

Two-stage piston compressor

A key component of compressed air generation systems is the compressor. It converts the supplied mechanical energy into a higher air pressure. Such systems are used to drive machines in mining, for pneumatic control systems in assembly plants or tyre inflation systems at petrol stations. Learn about Two-stage piston compressor Fluid_Machinery2 India for optimal educational outcomes..

• characteristic of a two-stage compressor
• part of DigiSkills learning projects
• piston compressor with 2 cylinders in V-arrangement
• plant control with PLC, operation via touch screen
• integrated router for operation and control via an end device and for screen mirroring: possible to mirror the user interface on up to 10 end devices
• intake vessel with nozzle to measure the intake volumetric flow rate, pressure sensor and additional manometer
• pressure vessel after the first stage as intercooler
• pressure vessel after the second stage with safety valve, blow-off valve and silencer as well as an additional manometer and a pressure switch
• sensors for pressures, temperatures and electric power output
• data acquisition via PLC on internal USB memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer–s own network or direct LAN connection without customer network
• online access to the Media Center with multimedia instructional materials: PDF, CAD files, STEP files, videos
