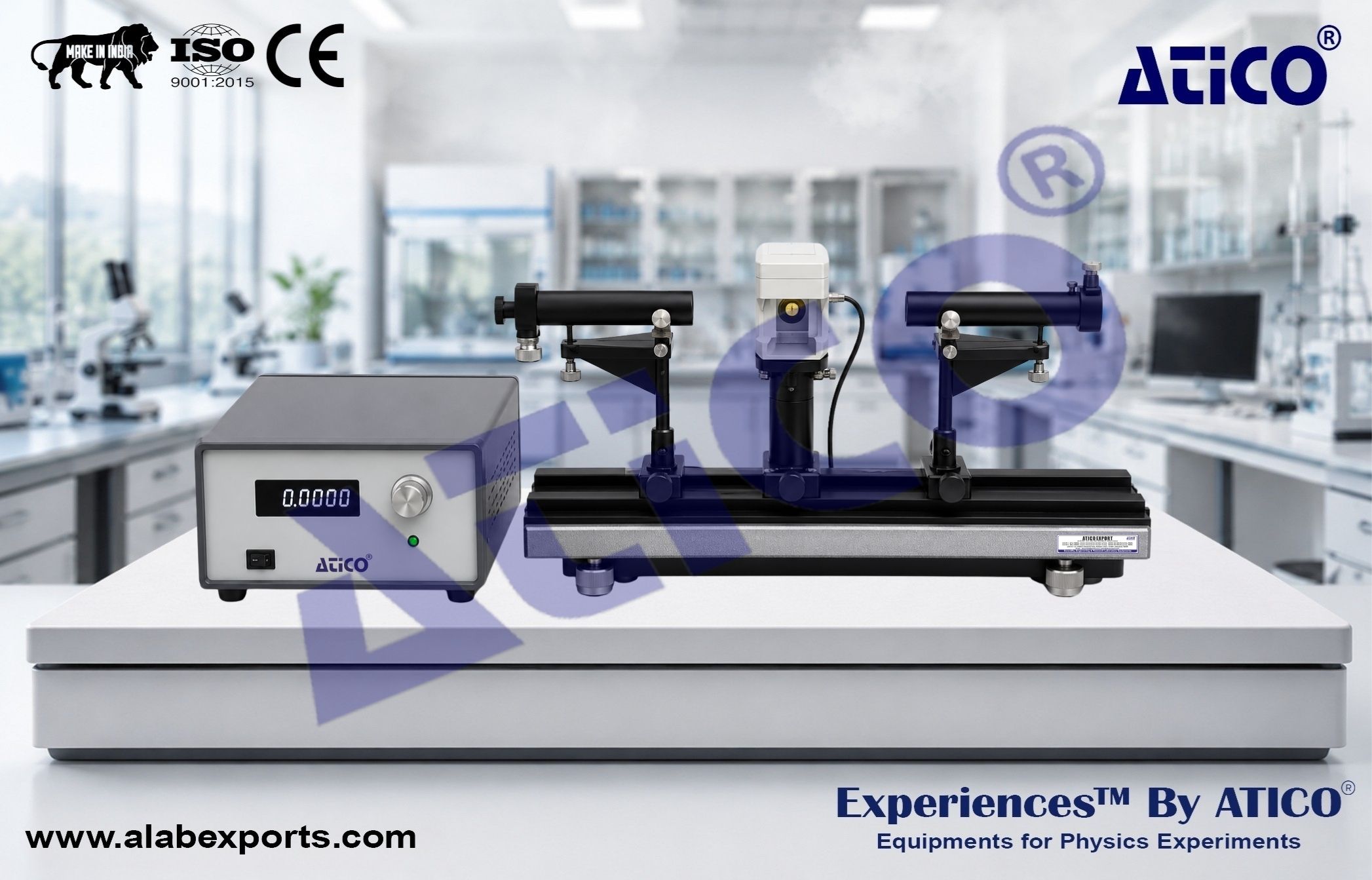

Ultrasonic Grating Physics Lab Experimental Device

This experimental system is designed to study ultrasonic light diffraction, also known as the acousto-optic effect. When light propagates through a liquid medium carrying ultrasonic waves, periodic variations in the medium's refractive index act as an optical grating, causing the light to diffract.

By performing the experiment, users can observe the interaction between light and sound waves, understand the principles of acousto-optic modulation, and measure the propagation speed of sound in a liquid medium. The system also provides practical insight into the applications of acousto-optic technology in modern optical and measurement systems.

• Acousto-optic effect investigation
• Ultrasonic light diffraction studies
• Optical grating formation in liquid media
• Measurement of sound velocity in liquids
• Light and sound wave interaction analysis
• Optical diffraction observation
• Frequency-dependent acousto-optic measurements
• Applied optics and wave physics experiments

Experimental System Includes :

• Main experimental unit
• Spectral light source
• Optical rail
• Ultrasonic tank
• Collimator assembly
• Micrometer eyepiece measurement system

Ultrasonic Signal Generator :

• Continuously adjustable frequency
• Resolution: 0.001 MHz

Precision Slit :

• Slit width: 0.03 mm
• Slit length: 5 mm

Optical Lens :

• Aperture diameter: 40 mm
• Focal length: 190 mm

Ultrasonic Tank :

• Length: 100 mm
• Width: 50 mm
• Height: 65 mm

Micrometer Eyepiece :

• Focal length: -31.46 mm
• Magnification: 20×
• Precision measurement capability

Optical Rail :

• Length: 1 m

Input Power :

• 220 V, 50 Hz

Output Signal Frequency Range :

• 8–12 MHz

Observation Telescope :

• Focal length: 170 mm
