Unit for studying Methods to Determine the Elastic Line

The Unit for studying Methods to Determine the Elastic Line, allows to compare different methods to determine the elastic line of a statically determinate or indeterminate beam.

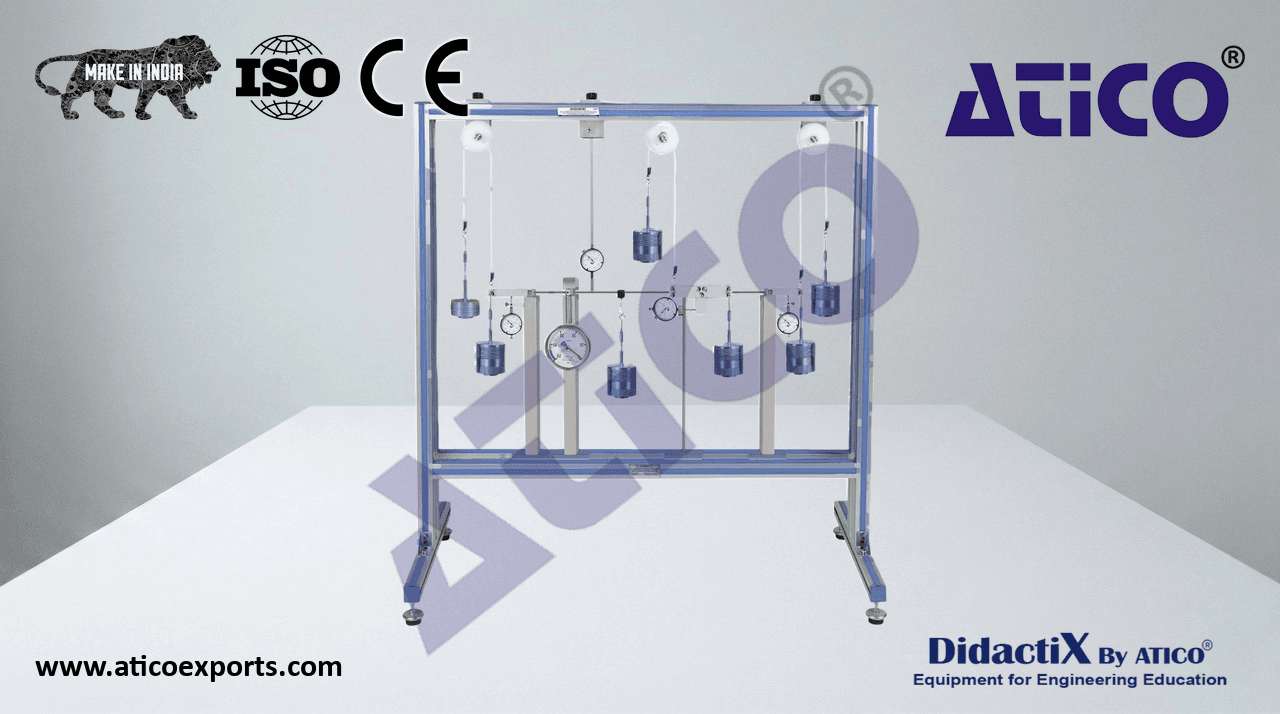

ATENG 12169 — Unit for studying Methods to Determine the Elastic Line

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12169” unit consists mainly of:
• Three beams:
• Material: stainless steel.
• Length: 1000 mm.
• Cross-section: 25 x 4 mm.
• Supports:
  Two supports with clamp fixings and dial gauge to realize statically determinate or indeterminate systems. They can also be used as
  articulated supports. These dial gauges are used to measure forces and the angle of inclination of the beam.
  Support with a force gauge to measure the deflection of the beam at a random point.
  Device with dial gauge to generate a bending moment at a random point on the beam. The dial gauges measures the angle of
  inclination of the device.
  Dial gauge situated in the upper side of the beam.
  Three fixed pulleys situated in the upper side of the unit frame.
  Three cords.
  Movable hook to situate weights at a random point of the beam.
• Set of weights:
• Material: stainless steel.
  21 x 5N.
  30 x 1N.
  It includes seven weight holders (1N).
• Measuring ranges:
• Force gauge, range: -50 – 50 N, graduations: 1N.
• Dial gauge, range: 0 – 20 mm, graduations: 0.01 mm.
