Unit for the Kinematic Study of Gear Trains

The Unit for the Kinematic Study of Gear Trains, has been designed to perform the kinematic study of spur gears and planetary gears.

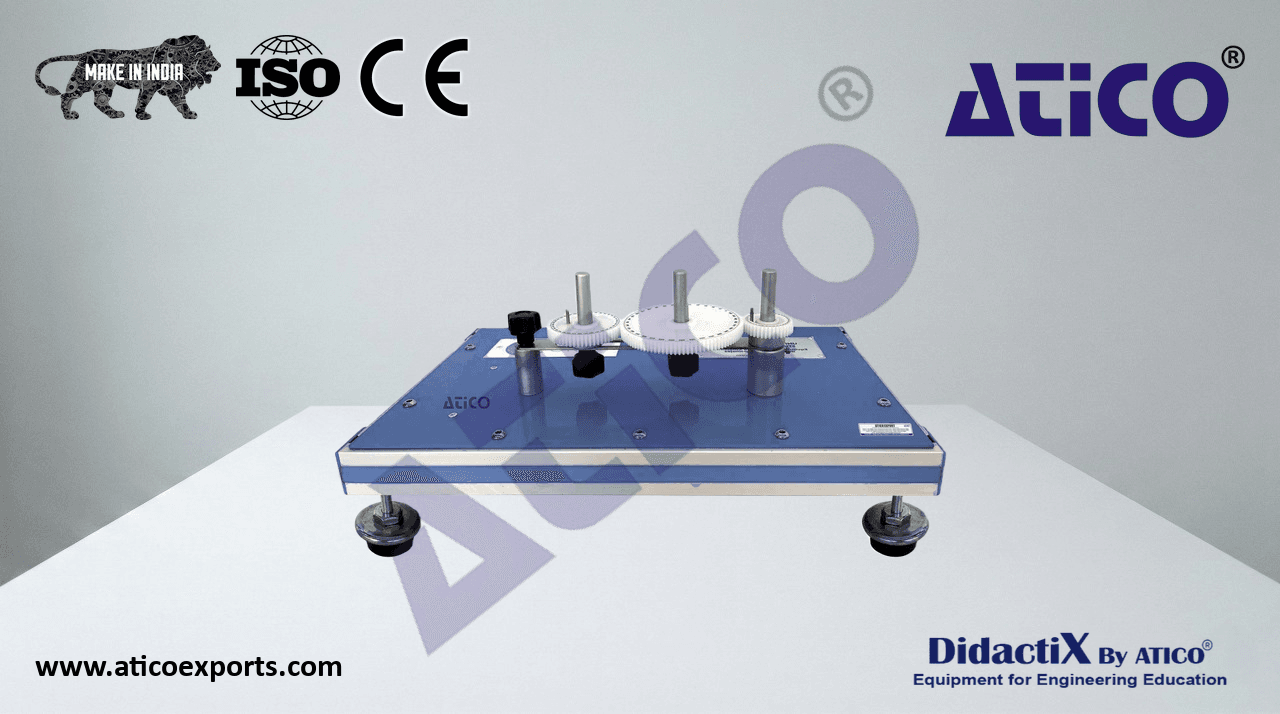

ATENG 12091 — Unit for the Kinematic Study of Gear Trains

Bench-top unit with pivoting legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12091” unit mainly consists of:
• Gears:
  Four cogwheels.
• Material: plastic.
• Module: 1 mm.
• Number of teeth: 40, 60, 80 and 100.
  Pivoting rail. ATENG 12091 detail
  Rail lock.
  Shafts and pins.
