Unit to Study a Shaft with Journal Bearings Assembly

The Unit to Study a Shaft with Journal Bearings Assembly, enables the study of practical assembly and disassembly, maintenance and repair tasks of a simple slide bearing, so that the student will know perfectly both the unit operation and all of its components.

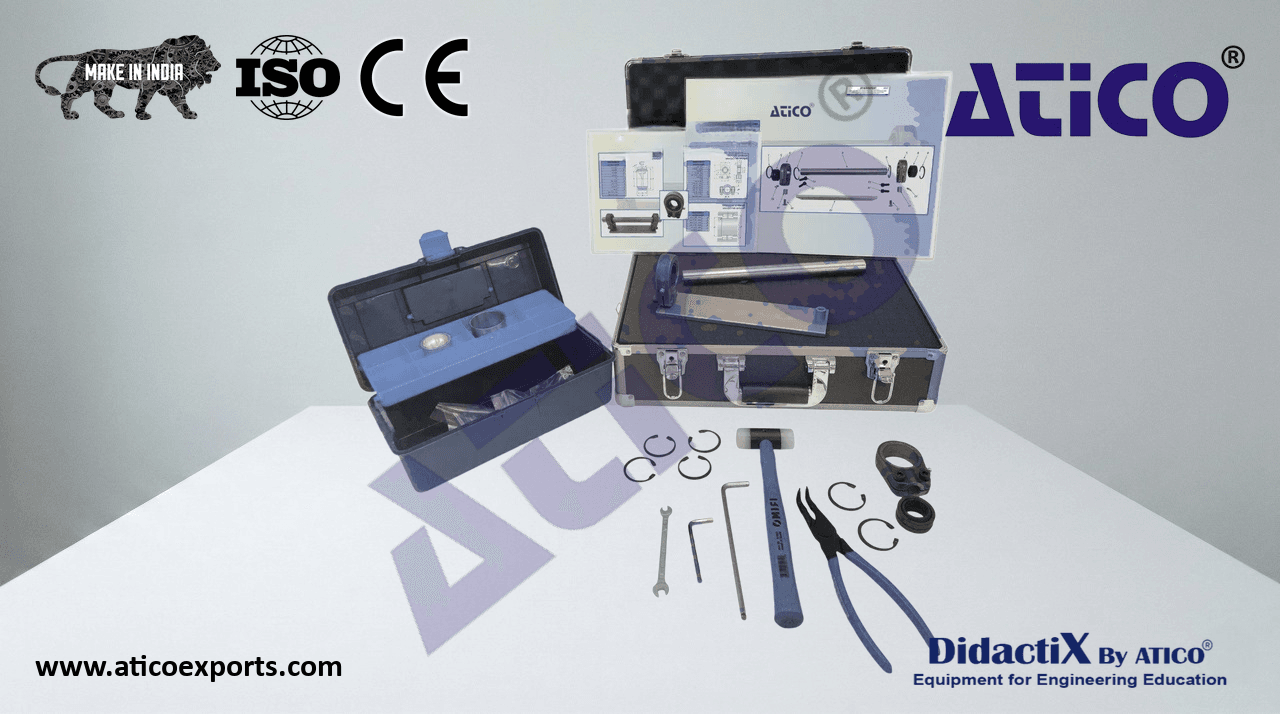

ATENG 12266 — Unit to Study a Shaft with Journal Bearings Assembly

Distribution and transport case for all parts.

• The “ATENG 12266”unit mainly consists of:
• Shaft bearing:
• Regular relubrication: lubricating grease.
• Combination of sliding contact surfaces: steel/steel.
  Steel supports.
  Stauffer bushing.
  Stainless steel base.
• Stainless steel shaft: Ø=25 mm.
• Set of assembly and disassembly tools in tool case:
  Nylon hammer.
  Retaining rings extractor close (rings Seeger).
  Allen wrenches.
  ATENG 12266 detail
  Fixed wrench.
  Accessories for extracting bearings (mounting fixtures).
  Spare parts kit.
