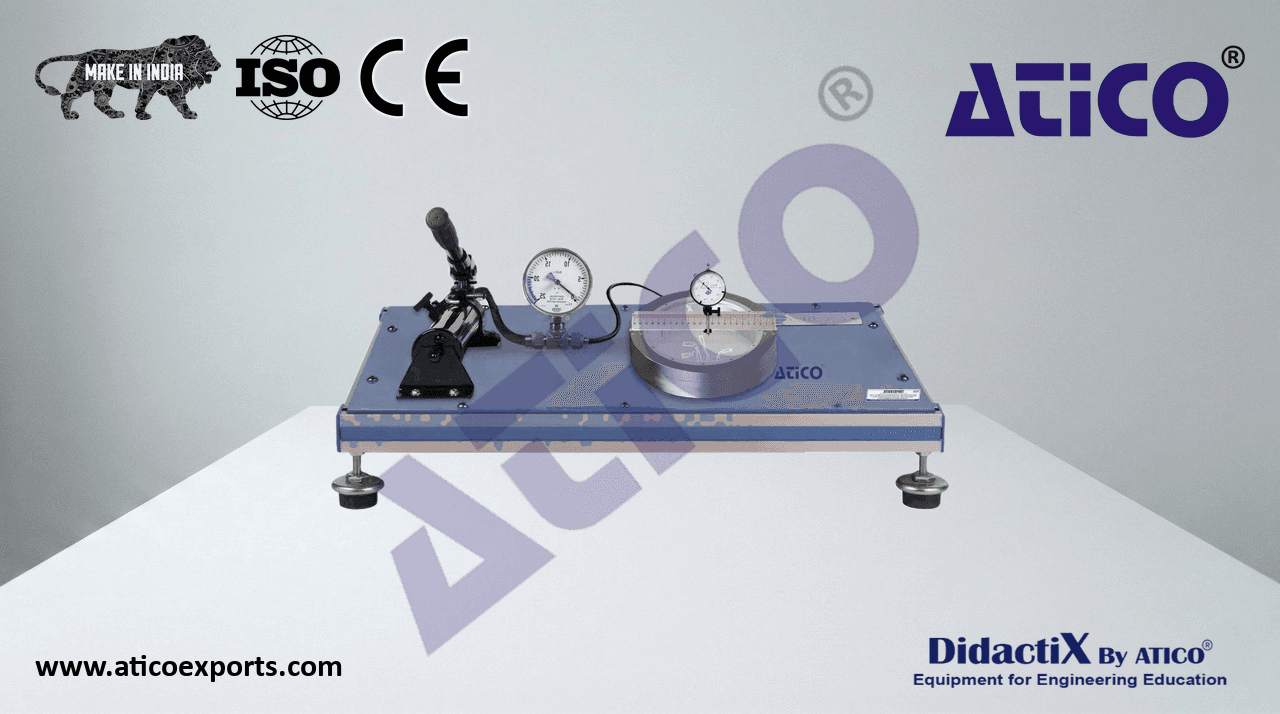

ATENG 12170 — Unit to Study Stress on a Membrane
Bench-top unit with adjustable legs.
Anodized aluminum frame and panels made of painted steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The "ATENG 12170" unit mainly consists of:
- Commercial aluminium alloy disc:
- Inner diameter = 70 mm.
- Outside diameter = 230 mm.
- Wall thickness = 3 mm.
- Hydraulic pump. Maximum system pressure: 0.7 bar.
- Pressure gauge, range: 0 – 1 bar.
Eight strain gauges.
- Dial gauge, measuring range: 0 – 20 mm, graduation: 0.01 mm.
Scale to know the position of the dial gauge.
- Electronic console:
Metal case.
Strain gauge connectors.
Strain gauge selector.
Strain gauge measurement display.
Strain gauges measurement tare switch.
Main switch.
Cables and accessories, for normal operation.
