UNIVERSAL TEST FRAME ACCESSORIES

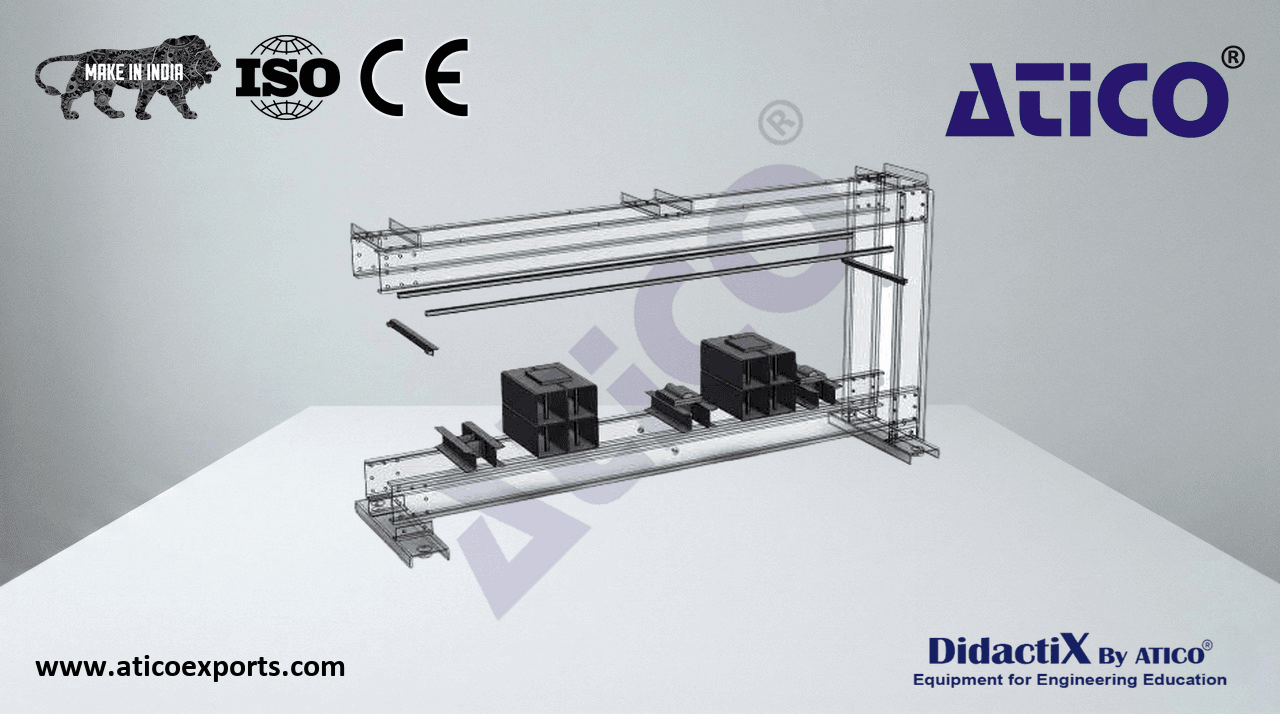

A full range of rocker and roller bearings, plates, support blocks, clamps and dial gauge mounts for setting up test specimens in a universal test frame. The roller diameter matches the depth of the half-round rocker. 25 mm thick steel reaction plates provide a bearing surface for rollers and rockers, while 6 mm steel distribution plates prevent crushing of timber beams. Learn about UNIVERSAL TEST FRAME ACCESSORIES suppliers for optimal educational outcomes.. Bearings are carried on transverse twin channel load supports, with additional height provided by support blocks.

• Load supports: 65 (L) × 30 (W) × 15 (H) cm
• Reaction plates: 30 (L) × 25 (W) × 3 (H) cm
• Support blocks: 65 (L) × 25 (W) × 25 (H) cm
• Longitudinal dial gauge support: 400 (L) × 4 (W) × 4 (H) cm
• Transverse dial gauge support: 150 (L) × 4 (W) × 4 (H) cm
• Rollers: 2 × Ø4.5 × 30 cm (L)
• Rockers: 2 × Ø2.25 × 30 cm (L)
• Material: Steel
