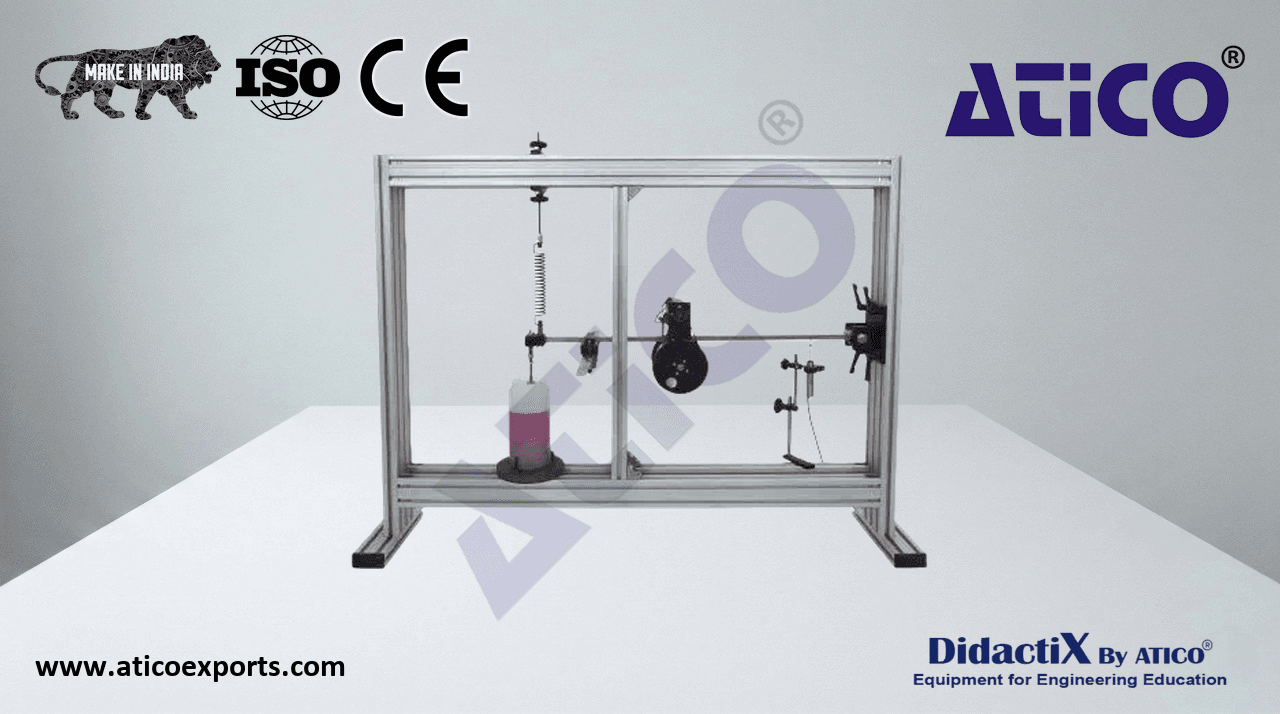

UNIVERSAL VIBRATION APPARATUS

A complete system for undertaking free and forced vibration, resonance and damping experiments. A beam pivots at one end from a bracket and bearing attached to a vibrations frame. A spring attached to the free end enables beam vibration; the horizontal spring position is adjustable and vibration travel is restricted via factory-set stops. Learn about UNIVERSAL VIBRATION APPARATUS vibration India for optimal educational outcomes.. One experiment demonstrates how resonant vibration of a primary system can be suppressed by attaching a smaller secondary system (dynamic absorber).

• Frame dimensions: approx. 1380 (L) × 1080 (H) × 310 (W) mm
• Beam: 25.4 (W) × 12.7 (H) × 840 (L) mm, coated steel; approx. 2.1 kg
• Springs: 4 × spring rates 2.5, 0.75, 1.5, 3.0 N/mm
• Motor exciter mass: approx. 5.1 kg
• Oscilloscope: Two-channel digital with data acquisition software
• Weights: 8 × 5 N
• Spring steel beam: 590 (L) × 25.4 (W) × 1.6 (H) mm
