UNSYMMETRICAL BENDING AND SHEAR CENTER

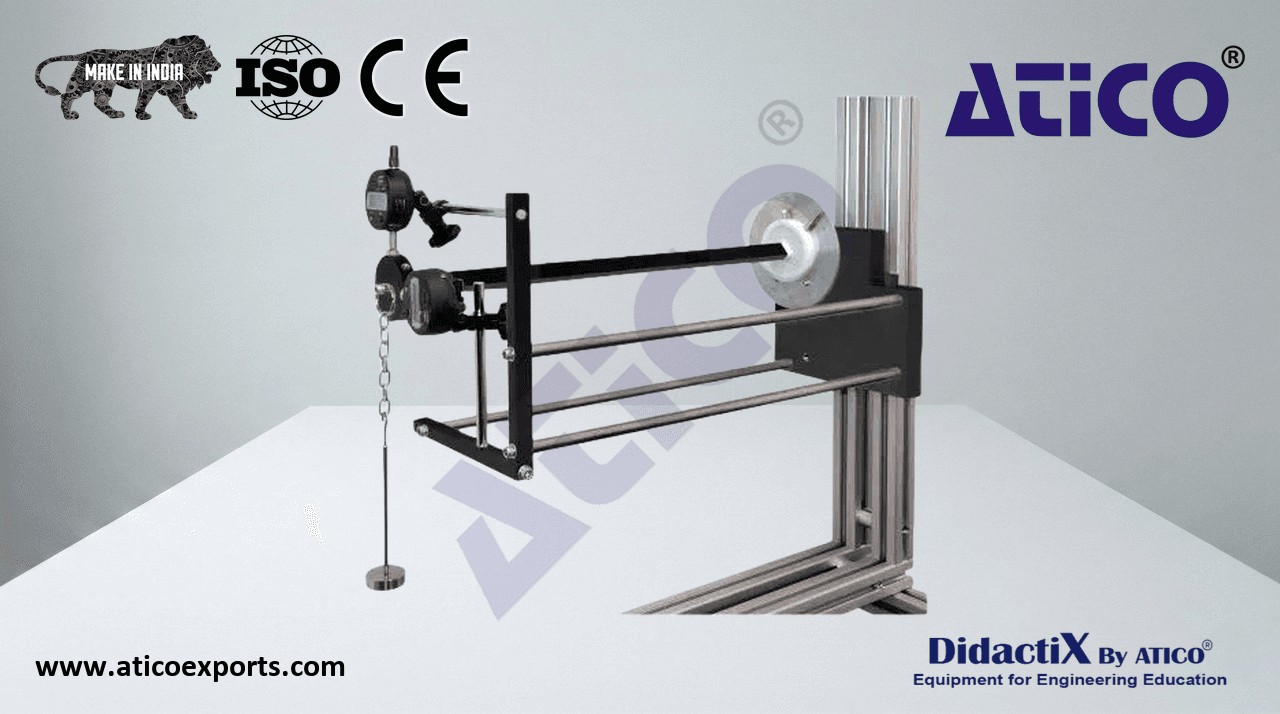

A 'U' section, 'L' section, and rectangular section cantilever are horizontally supported within a rotating clamp, which fits in a substantial block attached to a universal frame and stand (sold separately). The rotating clamp enables the loading and deflection planes to be set relative to the cross-section axes, with a protractor scale for reference. At the free end of each cantilever, two dial gauges are mounted at right angles to each other to measure deflection in both planes. Learn about UNSYMMETRICAL BENDING AND SHEAR CENTER for educational labs for optimal educational outcomes.. For shear centre work, additional loading bars attach to the free end of the specimens. Loading is applied via a load hanger and calibrated weights. Learn about UNSYMMETRICAL BENDING AND SHEAR CENTER specifications for optimal educational outcomes..

• 'U' section: 21 (W) × 40 (H) × 4.8 (t) × 530 (L) mm
• 'L' section: 25 (W) × 25 (H) × 3.2 (t) × 530 (L) mm
• Rectangular section: 20 (W) × 10 (H) × 530 (L) mm
• Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
• Weights set: 8 × 5 N
• Load hangers: 2
