Unsymmetrical Bending and Shear Centre (Next Generation Structures)

Experiment for the study of the vertical and horizontal deflection of different unsymmetrical sections. Mounts on the Structures platform and connects to the Structures automatic data acquisition unit and software.

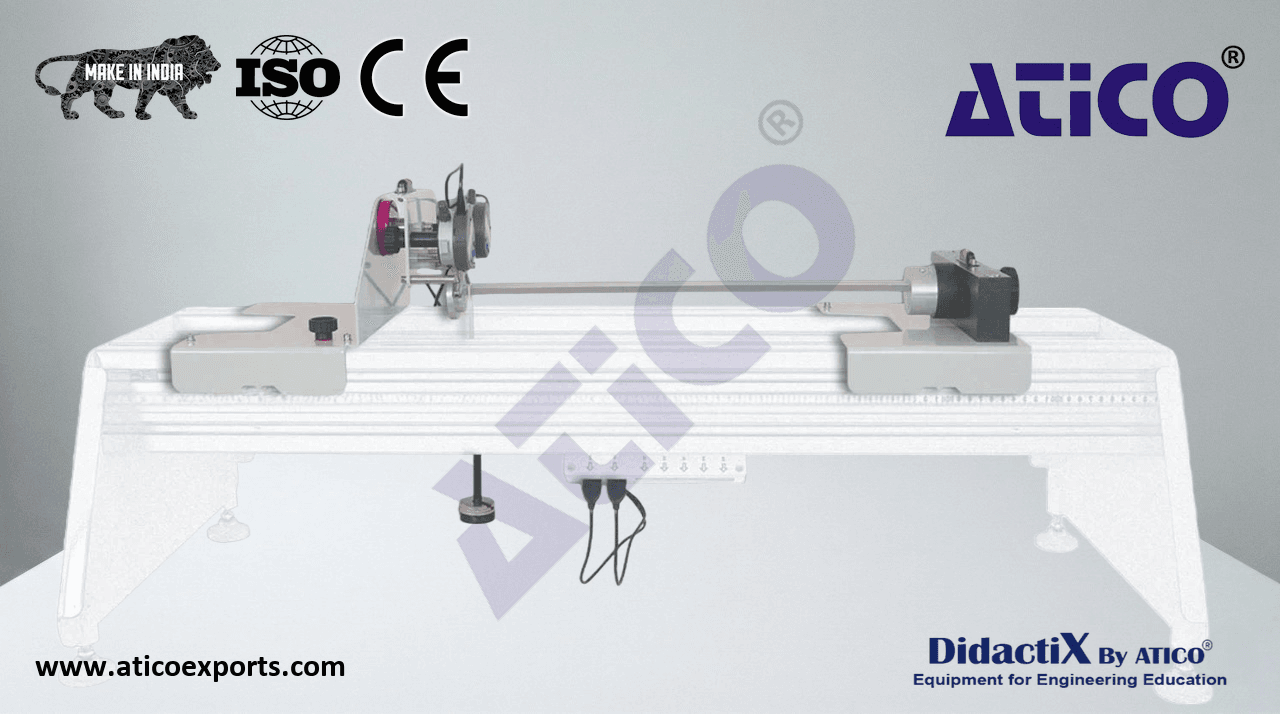

One of a range of experiment modules that fit to the Structures platform (available separately), the product helps students understand symmetrical and non-symmetrical bending of three different beam shapes, including an equal 'L', a 'U' and rectangular. It also finds the shear centre of the channel ('U') beam. For the symmetrical and non-symmetrical tests, a chuck clamps a beam while allowing rotation on its axis and allowing loads to be applied at various angles. Learn about Unsymmetrical Bending and Shear Centre (Next Generation Structures) exporters for optimal educational outcomes.. Load applied at the free end produce resulting deflections, measured by a pair of precision indicators. Students plot their results on a Mohr's circle which allows them to find the experimental Principal Second Moments of Area and position of the principal axes. Learn about Unsymmetrical Bending and Shear Centre (Next Generation Structures) price for optimal educational outcomes.. These may be compared to those for the arbitrary section axes and the values calculated by textbook beam equations. This helps to confirm the reliability of the textbook equations and the accuracy of the experiment results. Learn about Precision Unsymmetrical Bending and Shear Centre (Next Generation Structures) for optimal educational outcomes.. For shear centre tests, a chuck clamps the 'U' section beam. A plate clamped to the free end allows various off set loads to twist the beam. Learn about Unsymmetrical Bending and Shear Centre (Next Generation Structures) suppliers for optimal educational outcomes.. Students apply loads at various off sets and use the indicators to determine when the twist is zero, thus corresponding to the shear centre position. This product includes a Vernier Caliper for accurate measurements of the beam cross-sections. The deflection indicators have their own displays, but they can connect to the USB interface hub of the Structures platform for computer display and data acquisition.
