V8 Engine, 8 V-Type Cylinders, 32 Valves with Gearbox, Manual Operation

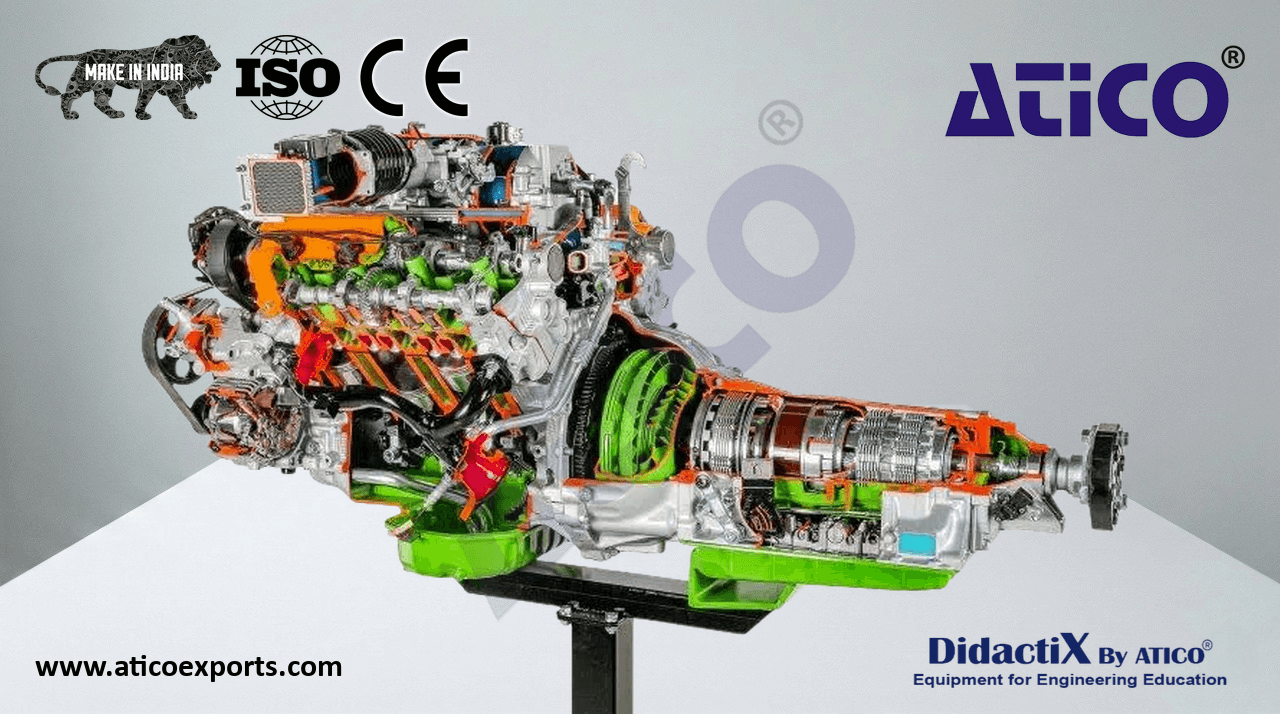

This product is a cut-away of a V-8 engine with an automatic gearbox. It is operated manually by hand crank, and it is mounted on a stand with wheels.

Specifications

• Displacement 3968cc
• 8 V-type cylinders
• 4 valves per cylinder (32 total)
• DOHC (double over-head camshaft)
• Bore and stroke 87,5x82,5
• Compression ratio 1:10
• Automatic gearbox: 4 forward speeds
• Multi-point electronic fuel injection
• Electronic ignition
• 12V alternator
• Centrifugal water pump
• Operated manually by hand crank
• Mounted on a stand with wheels

Weight And Dimensions

Size: 140cm x 90cm x 160cm (L x W x H) Net Weight: 230 kg Gross Weight: 340 kg.
