The Vacuum Technology Unit, has been designed to obtain the knowledge required to understand the operation of the most common elements used in vacuum technology.
Technical Specifications

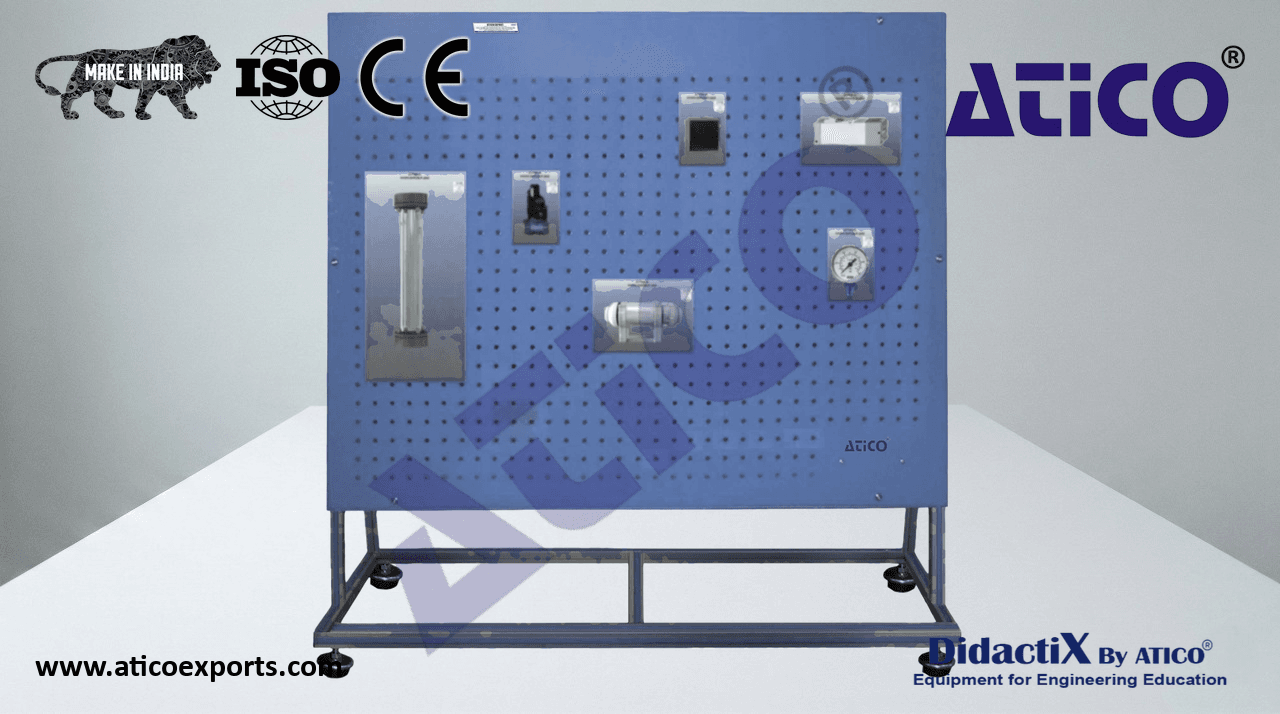

ATENG 12397 — Vacuum Technology Unit
The “ATENG 12397” unit consists of the following blocks:
All the components are mounted on a support plate with clamps to fix them to the perforated plate of the working bench. The support
plate has the name of the component and its standardized symbol.
All the pneumatic components include quick connections for flexible tube of 6 mm.
Support panel:
Frame made of aluminum profiles.
Perforated panel to attach the elements of the unit (pneumatic, electro-pneumatic, electrical components, etc.).
Air treatment block:
Pressure regulator with filter-regulator and water trap.
Double scale manometer (MPa and Psi).
Shut-off valve.
Distributor block:
8 quick connection outlets with check valve in each one.
Direct connection to the air treatment unit.
Set of vacuum elements:
Pressurized tank used as air vessel.
Two solid state vacuum switches.
Digital vacuum switch.
Digital timer with supply to 24 VDC.
Two programmable digital vacuum switches.
Vacuum manometer with electrical contact.
Multi-stage vacuum ejector.
Vacuum unit with ejector:
Ejector.
Supply valve.
Vacuum switch.
Filter.
Compact vacuum ejector.
Vacuum module with ejector and timer:
Ejector.
Time-controlled valve.
Vacuum switch.
Filter.
Vacuum module with ejector:
Ejector.
Valve.
Vacuum switch.
Filter.
Vacuum regulator with manometer.
Vacuum air suction filter.
Kits of 14 different suction pads:
Box to store the suction pads.
Flat suction pad made of nitrile rubber (NBR).
Flat suction pad made of fluorinated rubber.
Flat suction pad made of polyurethane rubber.
Flat suction pad made of silicone.
Flat suction pad made of nitrile rubber (NBR) with ribs.
Oval flat suction pad made of nitrile rubber (NBR).
Flat suction pad made of nitrile rubber (NBR) with ball joint.
Telescopic flat suction pad made of nitrile rubber (NBR) with ribs.
Concave flat suction pad made of nitrile rubber (NBR).
Flat suction pad made of nitrile rubber (NBR) with bellows.
Suction pad made of silicone with bellows.
Suction pad made of urethane with bellows.
Suction pad made of fluorinated rubber with bellows.
Power supply:
Outlet of 24 VDC.
ON/OFF lit switch (LED).
Fuse to protect the power supply against short-circuits.
Supply cable.
Module of electrical inputs:
Laboratory terminals of 2 mm.
Two pushbuttons.
Pushbutton with interlock.
Two contacts switchable by pushbutton.
Independent light indicator.
Material for the configuration of vacuum pneumatic circuits:
Blue flexible tube with length of 25 m and external diameter of 6 mm.
Tube cutter for tube of 6 mm.
Set of 20 pressure caps for tube of 6 mm.
Set of 20 “T” type push in fittings for tube of 6 mm.
Set of 20 “Y” type push in fittings for tube of 6 mm.
Set of 60 electrical cables with laboratory terminals of 2 mm of different length and color.
Cables and accessories for a correct operation.
