Verifying the Bernoulli Equation Measuring with the Precision Manometer

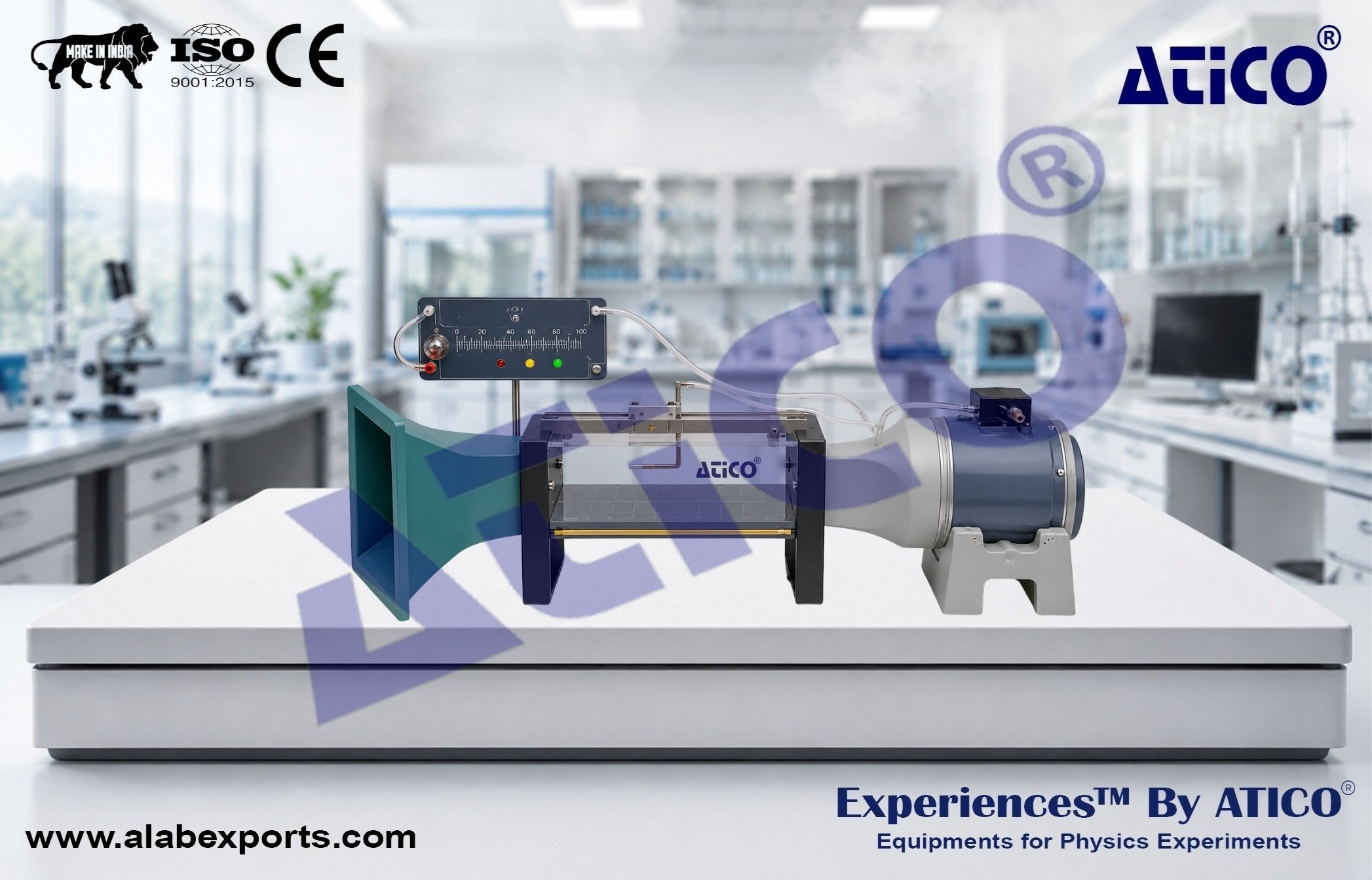

The Bernoulli's Principle Wind Tunnel Apparatus is designed to experimentally verify Bernoulli's equation by measuring the relationship between airflow velocity and pressure within a wind tunnel. The apparatus measures static pressure and total pressure at different cross-sections of a converging airflow channel. As the cross-sectional area changes, the variation in airflow velocity and pressure can be analyzed to demonstrate Bernoulli's Principle and the continuity equation. Manufactured by Atico Export India.

Principle

According to Bernoulli's Principle, the total energy of a fluid flowing through a streamline remains constant. As the cross-sectional area of the flow passage decreases, the flow velocity increases while the static pressure decreases. In this experiment, a built-in ramp gradually reduces the cross-section of the wind tunnel. A Prandtl pressure probe measures both the total pressure and static pressure at different locations, while a precision manometer measures the pressure difference. The experimental results verify the relationship between pressure, velocity, and cross-sectional area as predicted by Bernoulli's equation and the continuity equation.

Objectives

• Verify Bernoulli's equation experimentally.
• Measure static pressure and total pressure at different cross-sections.
• Study the relationship between airflow velocity and pressure.
• Verify the continuity equation.
• Analyze the effect of changing cross-sectional area on fluid flow.

System Components

Wind Tunnel :

• Quantity: 1

Suction and Pressure Fan :

• Quantity: 1

Prandtl Pressure Probe :

• Quantity: 1

Measurement Trolley for Wind Tunnel :

• Quantity: 1

Precision Manometer :

• Quantity: 1

Wind Tunnel System :

• Provides controlled airflow for Bernoulli's Principle experiments.

Variable Flow Channel :

• Built-in converging ramp gradually changes the cross-sectional area.

Prandtl Pressure Probe :

• Measures both static pressure and total pressure accurately.

Precision Pressure Measurement :

• Precision manometer provides accurate pressure difference measurements.

Educational Design :

• Ideal for demonstrating fluid flow, pressure variation, and Bernoulli's Principle.
